F1C1-201208-R33M

Fixed Inductors Overview

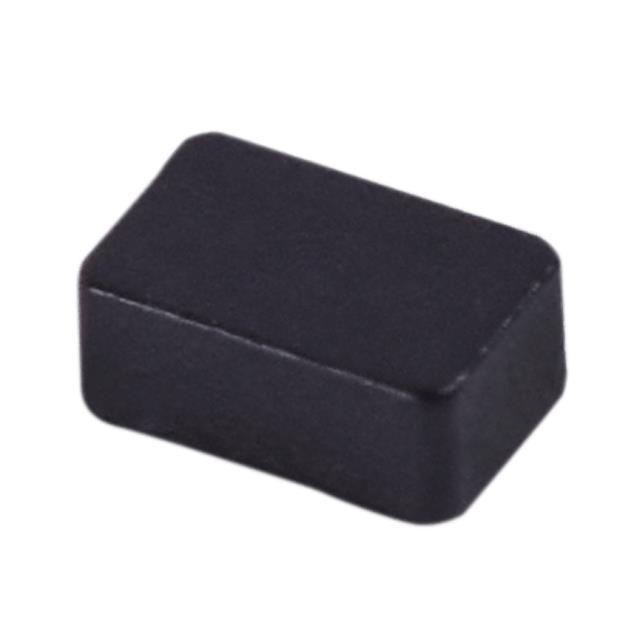

The Signal Transformer F1C1-201208-R33M is a shielded surface-mount power inductor from the F1C1 series, designed for high-current applications. It features an inductance of 0.33 µH with a tolerance of ±20%. The component supports a maximum DC current of 4.0 A and maintains a maximum DC resistance of 45 mΩ. It operates within a temperature range of -55°C to +125°C and utilizes a T-core structure made of iron powder alloy.

Fixed Inductors Feature Summary

• Shielded SMD design for noise attenuation
• T-core iron powder alloy construction
• Low profile form factor

Fixed Inductors Applications

• High-frequency noise filtering
• Attenuation in electrical circuits
• Blocking signals in power supplies

Fixed Inductors Procurement Notes

Verify the specific part number against manufacturer documentation to ensure compatibility with your circuit requirements. Confirm that the 0.33 µH inductance and 4.0 A current rating align with your design specifications. Check the package dimensions and pin configuration to match your PCB layout constraints before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component when a low-profile shielded inductor is required for high-frequency noise suppression. The T-core structure offers advantages in magnetic performance compared to standard designs. Ensure the operating temperature range meets your environmental conditions and that the current handling capabilities are sufficient for the load.

Fixed Inductors Part Context

This component belongs to the F1C1 series of high-power shielded SMD inductors introduced by Signal Transformer. The series is characterized by its unique T-core structure and iron powder alloy material, which enhance magnetic efficiency. The F1C1 line targets applications requiring robust noise filtering in compact electronic designs.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference data through official manufacturer channels or authorized distributors to identify compatible alternatives if necessary.
