F1C2-060606W-150M

Fixed Inductors Overview

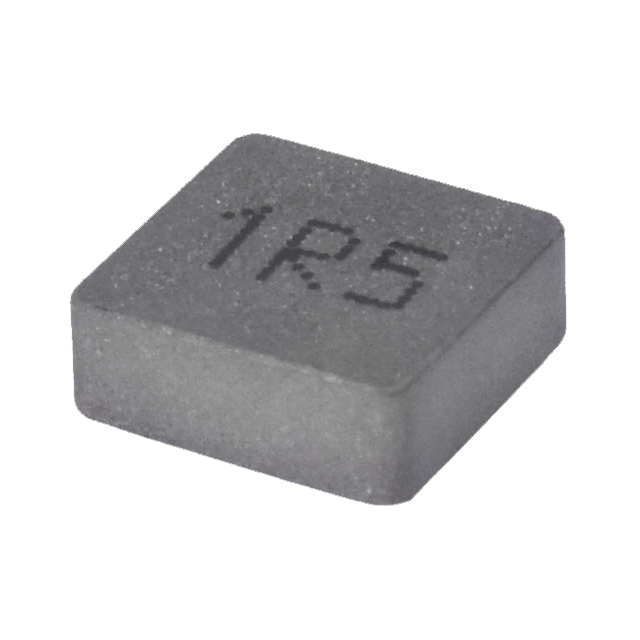

The Signal Transformer F1C2-060606W-150M is a shielded wirewound surface-mount inductor with an inductance of 15 µH. It supports a maximum DC current of 4.5 A and a saturation current of 5.8 A. The component features a maximum DC resistance of 43.75 mOhms. It operates within a temperature range of -55°C to +125°C. The physical dimensions are 6.6 mm in length, designed for high-power applications requiring noise attenuation.

Fixed Inductors Feature Summary

• Shielded construction for effective high-frequency noise blocking and attenuation
• High saturation current capability suitable for demanding power circuits
• Surface-mount design optimized for automated assembly processes

Fixed Inductors Applications

• Blocking and attenuating high frequency noise in electrical circuits
• Filtering applications in switch mode power supplies
• General purpose signal conditioning in electronic systems

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Signal Transformer documentation to ensure authenticity. Confirm that the requested unit matches the exact inductance value of 15 µH and the specified current ratings. Check for any updated datasheet revisions that may affect mechanical or electrical specifications prior to finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a shielded SMD inductor is required for high-current filtering tasks. Ensure the circuit design accommodates the 4.5 A continuous current and 5.8 A saturation limit. Verify that the operating environment remains within the -55°C to +125°C range. Compare against other F1C2 series variants if different inductance values or current ratings are needed.

Fixed Inductors Part Context

This component belongs to the F1C2 Series, which consists of high-power shielded SMD inductors from Signal Transformer. These devices are engineered for robust performance in filtering and noise suppression roles. The series offers varying profile heights to suit different board space constraints while maintaining high efficiency and reliability standards for industrial and commercial electronics.

Fixed Inductors Replacement Considerations

Consult official Signal Transformer documentation for verified substitute part numbers. Cross-reference parameters such as inductance, current ratings, and physical dimensions to ensure compatibility. Do not assume interchangeability with generic components without verifying technical specifications against the original design requirements.
