F1F3-1004T-2R2M

Fixed Inductors Overview

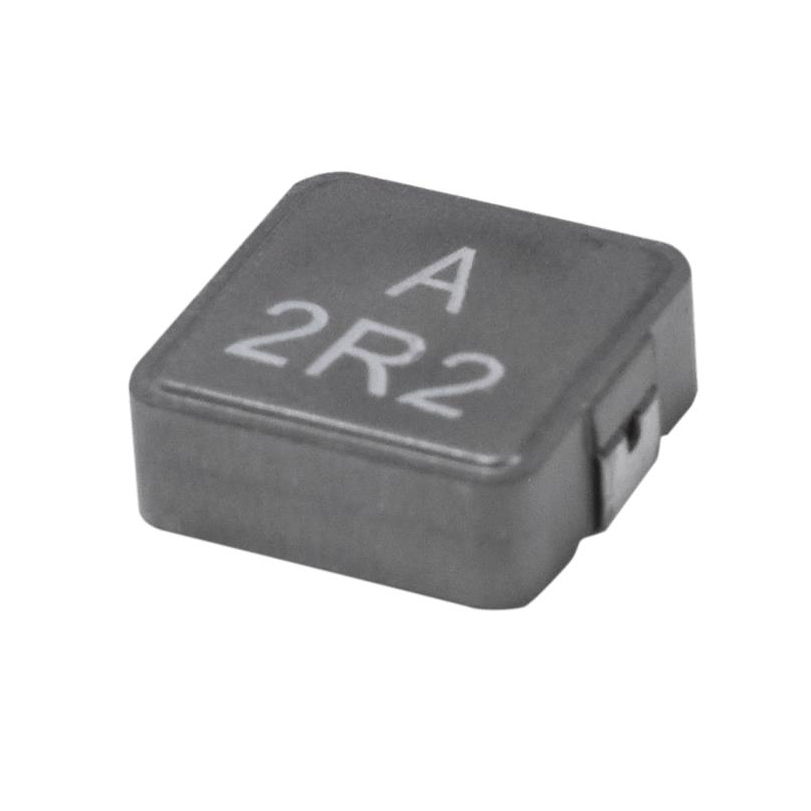

The F1F3-1004T-2R2M is a high-power shielded surface-mount inductor from the Signal Transformer F1F3 series. It features an inductance of 2.2 µH and a maximum DC resistance of 9 mΩ. The component supports a current rating of 12 A and operates within a temperature range of -55°C to 155°C. Designed for rigorous automotive standards, it meets AEC-Q200 requirements. Testing is conducted at a frequency of 100 kHz.

Fixed Inductors Feature Summary

• Shielded SMD construction for high-power applications
• Compliance with AEC-Q200 automotive standards
• Wide operating temperature range up to 155°C

Fixed Inductors Applications

• Automotive power electronics
• High-current DC-DC conversion
• Power supply filtering

Fixed Inductors Procurement Notes

Verify the specific manufacturer documentation for the F1F3-1004T-2R2M to confirm exact electrical tolerances and thermal characteristics. Ensure that the selected component aligns with the required automotive reliability standards and physical footprint constraints for the target design.

Fixed Inductors Selection Notes

Select this inductor when high current handling and low DC resistance are critical. The shielded design minimizes electromagnetic interference. Consider the 155°C operating limit for high-temperature environments. Verify compatibility with automated surface-mount assembly processes.

Fixed Inductors Part Context

This component belongs to the Signal Transformer F1F3 series of high-power shielded inductors. These components are engineered to meet stringent automotive quality standards. The series offers various inductance values optimized for power management circuits requiring robust performance and compact packaging.

Fixed Inductors Replacement Considerations

Consult official distributor databases for confirmed substitute part numbers. Ensure any replacement matches the 2.2 µH inductance, 12 A current rating, and 9 mΩ DCR specifications while maintaining AEC-Q200 compliance.
