F20-600

Overview

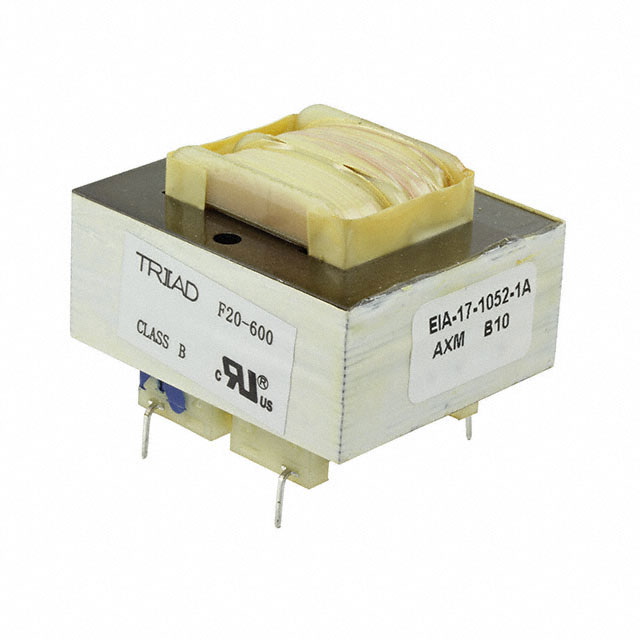

The Triad Magnetics F20-600 is a split bobbin power transformer designed for PCB mounting. It features a laminated core with dual primary windings rated for 115V AC and 230V AC operation. The secondary configuration provides a center-tapped output of 20V at 600mA, or two independent 10V outputs at 1.2A each. With a total power rating of 12VA, this component supports Class 2/3 safety standards and UL/cUL certification. It utilizes through-hole PC pin termination for secure board integration.

Feature Summary

• Split bobbin construction enhances versatility for printed circuit board applications
• Dual primary winding design allows flexible input voltage selection
• Center-tapped secondary architecture enables multiple output configurations
• Certified for Class 2/3 safety compliance under UL/cUL standards

Applications

• Low-voltage power supply circuits
• Audio equipment power stages
• Control panel instrumentation
• General-purpose electronic devices requiring isolated DC conversion

Procurement Notes

Verify the specific suffix (e.g., -C2) against your schematic requirements, as it may indicate distinct packaging or terminal variations. Confirm that the 12VA rating aligns with your thermal management strategy. Ensure the PCB footprint matches the through-hole pin spacing. Cross-reference the UL file number for regulatory compliance in your target market.

Selection Notes

Choose this model when a compact, split-bobbin form factor is required for space-constrained designs. The dual secondary options provide flexibility for bridge rectifier or dual-rail configurations. Verify that the 600mA continuous current meets load demands without exceeding thermal limits. Consider the physical dimensions to ensure adequate clearance on the assembly board.

Part Context

This component belongs to the Triad Magnetics Split Pack series, which specializes in versatile transformers for PCB mounting. The series offers various voltage and current combinations while maintaining a consistent low-profile design. These transformers are engineered for reliability in consumer and industrial electronics where efficient power conversion is critical.

Replacement Considerations

Direct substitutes include the F20-600-C2 variant, which shares identical electrical specifications but may differ in packaging details. Ensure any replacement maintains the same 12VA rating, 20VCT secondary output, and through-hole termination style to preserve board compatibility.
