F22T136GVPWK

Overview

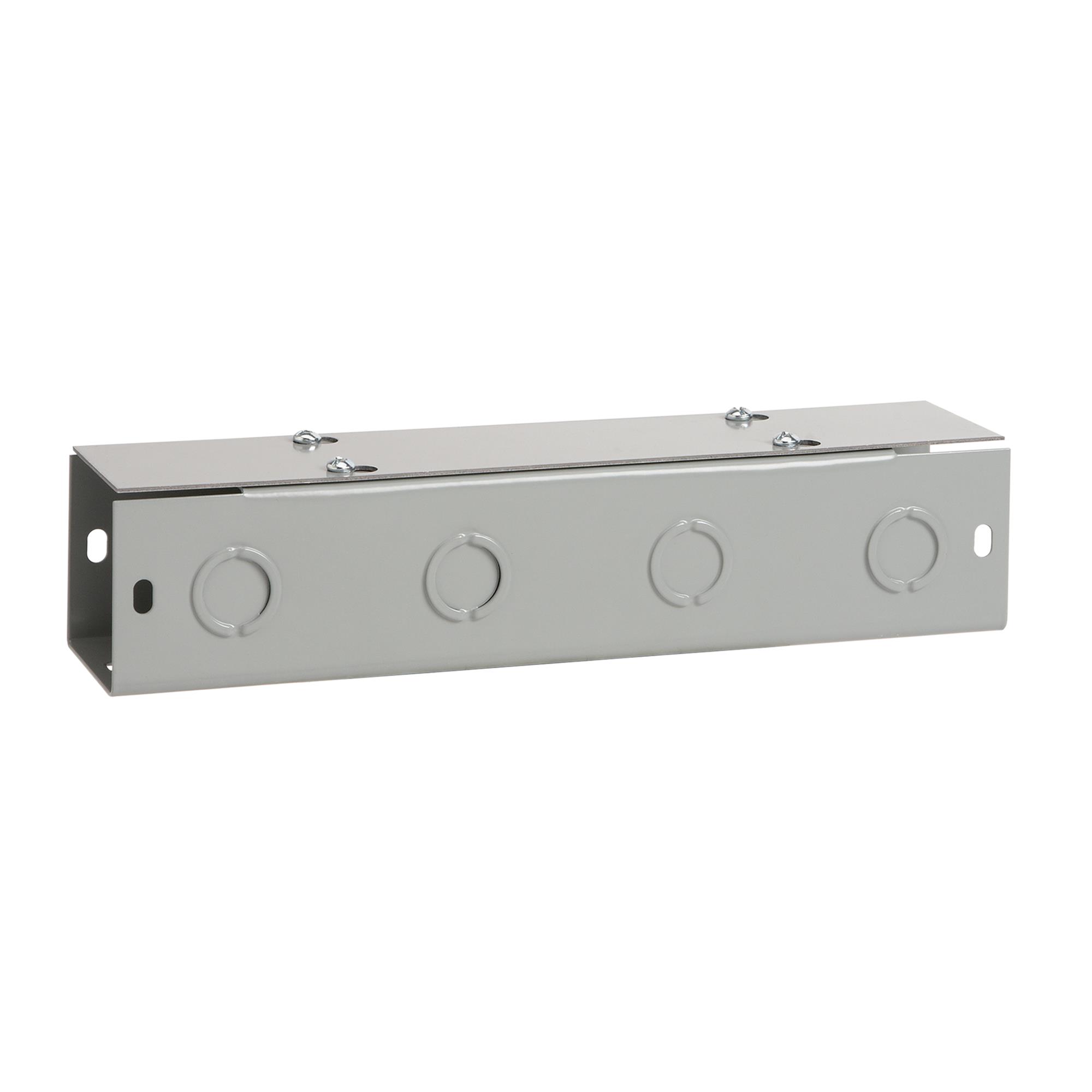

The nVent Hoffman F22T136GVPWK is a Type 1 indoor straight section lay-in wireway designed for cable management. Constructed from steel with a gray painted finish, it measures 2.5 inches by 2.5 inches in cross-section and 36 inches in length. The unit features an opening on one side to facilitate the laying of wires and cables along its length. It is intended for use in corrosive or dirty indoor environments, providing protection for electrical wiring while allowing easy access for installation and maintenance.

Feature Summary

• Straight section design for linear cable routing
• Lay-in construction allows wires to be placed directly into the channel
• Type 1 rating suitable for indoor use
• Corrosion-resistant painted steel construction

Applications

• Indoor electrical panel cable management
• Protection of wires in dirty industrial environments
• Routing cables in corrosive indoor settings
• Organizing electrical infrastructure in control enclosures

Procurement Notes

Verify the exact part number F22T136GVPWK against official nVent Hoffman documentation to ensure compatibility with existing enclosure systems. Confirm that the Type 1 rating meets your specific indoor environmental requirements. Check for any regional manufacturing variations or updated material specifications before finalizing procurement decisions.

Selection Notes

Select this component when a rigid, straight cable path is required within an indoor electrical assembly. Ensure the 2.5-inch square cross-section accommodates the total volume of conductors. Verify that the 36-inch length aligns with the physical constraints of the installation space and that the Type 1 ingress protection level is sufficient for the ambient conditions.

Part Context

This wireway belongs to the nVent Hoffman Lay-In Painted Flat-Cover Wireway series. It is part of a modular system designed to create ready-to-populate panels. The product line emphasizes user-friendly solutions for automating drilling and tapping processes, optimizing material usage and labor efficiency in electrical enclosure fabrication.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult nVent Hoffman technical support for equivalent alternatives if this specific model is discontinued or unavailable.
