F24-045-C2

Overview

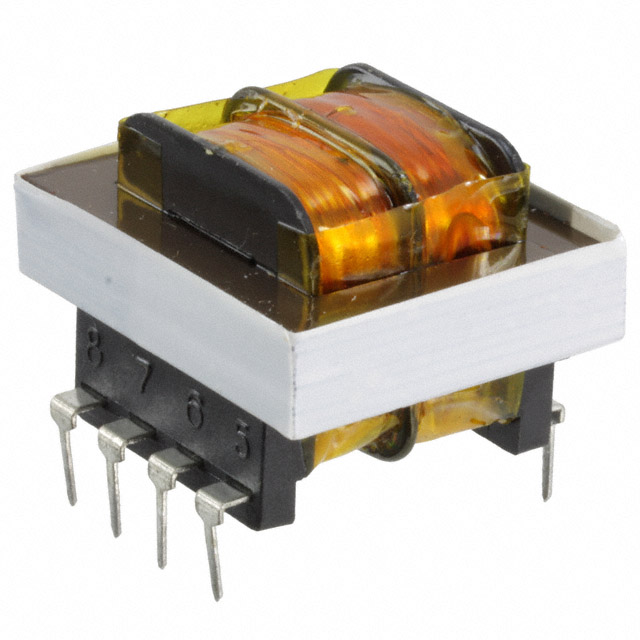

The Triad Magnetics F24-045-C2 is a laminated core power transformer with a maximum power rating of 1.1VA. It features a single primary winding rated for 115V operation and dual secondary windings providing parallel 12V at 90mA or series 24V at 45mA. The component utilizes PC pin through-hole mounting and offers an isolation voltage of 4200Vrms. Physical dimensions are 34.93mm in length, 28.58mm in width, and a maximum seated height of 23.80mm.

Feature Summary

• Split bobbin construction designed to minimize capacitive coupling between windings
• Compliant with UL/cUL Class 2/3 safety standards for low energy applications
• Laminated core design optimized for standard 50Hz and 60Hz line frequencies

Applications

• Low-power AC/DC power supply circuits
• Signal isolation in electronic control systems
• Consumer electronics requiring Class 2/3 compliance

Procurement Notes

Verify the specific suffix against manufacturer documentation to confirm exact electrical characteristics and certification status. Ensure the procurement channel provides original manufacturer packaging to prevent counterfeit components. Cross-reference the datasheet revision date to guarantee compatibility with current regulatory requirements and physical specifications before finalizing orders.

Selection Notes

Select this component when a compact, low-power transformer is required for isolated power conversion. The split bobbin architecture is suitable for applications sensitive to high-frequency noise coupling. Verify that the 1.1VA rating meets the load requirements and that the 4200Vrms isolation level satisfies the system's safety insulation needs.

Part Context

This model belongs to the Triad Magnetics Split Pack series, which emphasizes reduced inter-winding capacitance. The FS and F series share similar physical footprints but differ in power ratings and winding configurations. This specific part number represents a lower power variant within the broader family of laminated core transformers offered by the manufacturer.

Replacement Considerations

FS20-120-C2: Higher power (2.4VA) with different secondary voltage/current ratings. FS16-150-C2: Higher power (2.4VA) with different secondary voltage/current ratings.
