F3-10-B

Overview

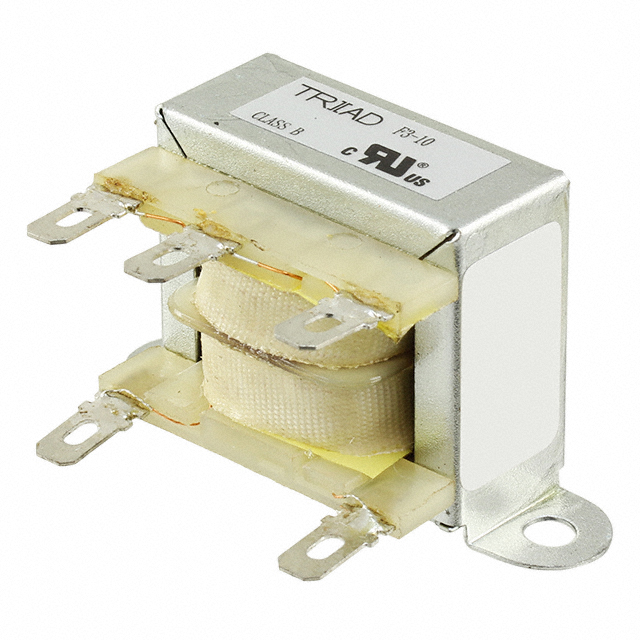

The Triad Magnetics F3-10-B is a laminated core power transformer designed for chassis mounting. It features a single primary winding rated at 115V and a single secondary winding providing 10V at 250mA. The unit has a maximum power rating of 2.4VA and offers 2500VAC isolation voltage. Termination options include solder and quick connect styles, ensuring flexible integration into industrial control applications.

Feature Summary

• Laminated core construction for reliable power transformation
• Chassis mount design with multiple termination options
• Dual voltage isolation capability for safety compliance

Applications

• Industrial control panels
• Equipment requiring isolated low-voltage power
• Chassis-mounted electronic assemblies

Procurement Notes

Verify the specific termination style required for your assembly, as the part supports both solder and quick connect options. Confirm that the 115V primary input matches your system's supply voltage. Ensure the chassis mounting footprint accommodates the physical dimensions of the transformer to guarantee proper fit and secure installation within the enclosure.

Selection Notes

Select this component when a compact, chassis-mountable transformer is needed for low-power applications. The 2.4VA rating suits circuits requiring minimal current draw. Consider the available termination types to match existing PCB or wiring harness designs. Verify that the 2500VAC isolation meets the safety standards required for your specific equipment classification.

Part Context

This model belongs to Triad Magnetics' industrial control transformer lineup. It provides essential isolation and voltage step-down capabilities for sensitive electronics. The series is known for robust construction suitable for demanding environments. It serves as a critical interface between high-voltage mains and low-voltage control logic.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
