F3-16

Overview

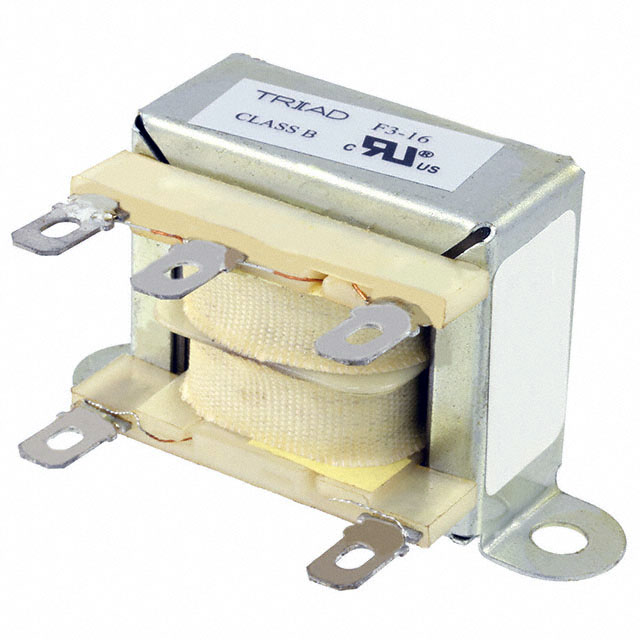

The Triad Magnetics F3-16 is a laminated core power transformer designed for chassis mounting. It features a single primary winding rated at 115V and a secondary configuration providing 16V at 150mA. The unit delivers a maximum power of 2.4VA with an isolation voltage of 2500Vrms. It utilizes quick connect terminals for efficient assembly and is housed in a compact form factor suitable for industrial applications requiring reliable AC-to-AC conversion.

Feature Summary

• Chassis mount design for secure installation
• Laminated core construction for efficiency
• Quick connect terminal interface
• High isolation voltage rating

Applications

• Industrial control systems
• Power supply units
• Electronic equipment enclosures

Procurement Notes

Verify the specific datasheet version to confirm regulatory compliance status, including UL/cUL certification details and RoHS adherence. Ensure the mounting hardware requirements match the chassis design specifications. Confirm that the input voltage range aligns with the system's primary power source before finalizing procurement orders to prevent operational mismatches.

Selection Notes

Select this component when a low-power, chassis-mounted solution is required for 115V primary systems. The 2.4VA rating suits applications with modest current demands. Consider the physical dimensions and terminal type during PCB or panel layout planning. Evaluate thermal management needs based on the enclosed environment and load conditions to ensure long-term reliability.

Part Context

This transformer belongs to the F3 Quick Pack series by Triad Magnetics, characterized by compact size and rapid integration capabilities. The series targets designers needing standardized power conversion components with minimal footprint. The F3-16 specifically addresses niche voltage requirements within this lineup, offering a dedicated 16V secondary output for specialized circuit architectures.

Replacement Considerations

Cross-reference with Hammond Manufacturing part number 164D20 as a potential substitute. Verify electrical parameters and physical dimensions match before substitution. Ensure compatibility with existing mounting structures and terminal interfaces.
