F3-56

Overview

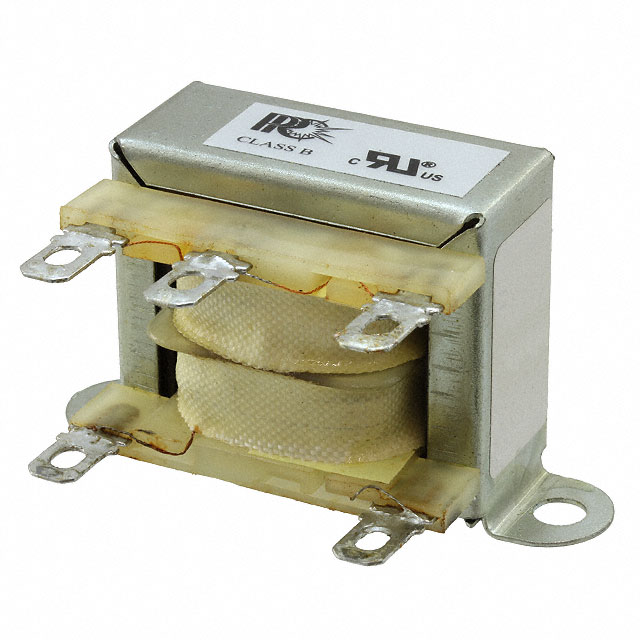

The Triad Magnetics F3-56 is a power transformer designed for industrial control applications. It features a laminated core construction and chassis mounting style with quick connect terminals. The unit provides an isolation voltage of 2500VAC and has a power rating of 2.4VA. Physical dimensions include a maximum seated height of 30.15mm, with a weight of approximately 113.4g (0.25 lb).

Feature Summary

• Chassis mount design with quick connect termination for secure installation.
• Laminated core construction for efficient power transformation.
• High isolation voltage capability ensuring safety in industrial environments.

Applications

• Industrial control systems
• Power supply circuits requiring isolation
• General purpose electrical equipment

Procurement Notes

Verify the specific datasheet version to confirm terminal configuration and insulation class. Ensure the receiving facility can accommodate chassis mounting requirements and quick connect interface specifications. Cross-reference part numbers with authorized distributor lists to avoid counterfeit components.

Selection Notes

Select this component when a low-power, isolated transformer is required for chassis-mounted industrial applications. Consider the 2.4VA rating and 2500VAC isolation limits against system demands. Evaluate physical space constraints regarding the 30.15mm height and mounting style compatibility.

Part Context

This component belongs to the Triad Magnetics power transformer series, specifically tailored for industrial use. It serves as a fundamental isolation element in control circuits, distinguishing itself through its robust laminated core and standardized quick connect interface suitable for panel integration.

Replacement Considerations

Consult official manufacturer substitution guides for direct equivalents. Verify that any alternative maintains identical isolation voltage, power rating, and physical mounting dimensions to ensure circuit compatibility.
