F3099BB06

Power Line Filter Modules Overview

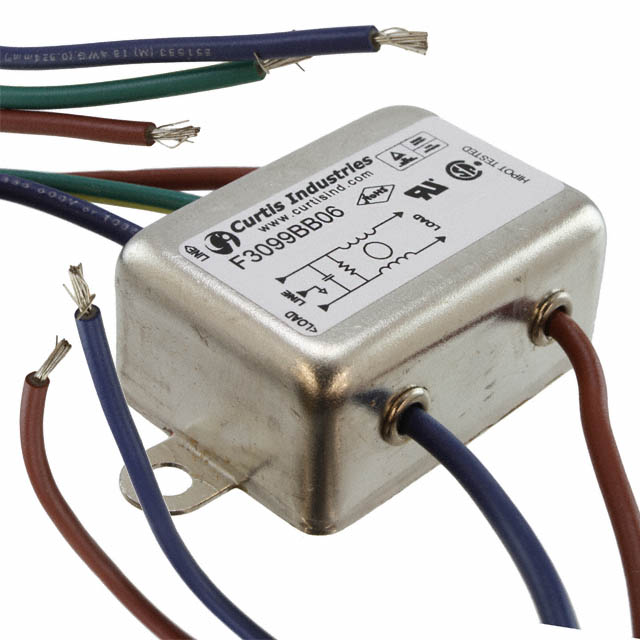

The Curtis Industries F3099BB06 is a single-phase EMC/EMI line filter module designed for chassis mounting. It operates at a rated voltage of 250VAC and supports a continuous current of 6A at 50/60Hz frequencies. The unit features wire leads for connection and utilizes a single-stage filtering architecture. It includes a high-potential test rating of 1 minute and can withstand a current overload of 6 times the rated value for 8 seconds.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression
• Chassis mount construction with wire leads
• High-voltage isolation testing capability

Power Line Filter Modules Applications

• Industrial equipment power input stages
• Medical device power supplies
• Commercial machinery control panels

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision to confirm compliance with current safety standards such as UL or IEC. Ensure the chassis mounting holes align with your enclosure design. Confirm that the wire lead length meets your internal wiring requirements before finalizing the order.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, 6A rated EMI filter is required for chassis installation. Consider the physical dimensions and terminal type compared to PCB-mounted alternatives. Evaluate the need for additional filtering stages if higher attenuation is necessary beyond the single-stage capability.

Power Line Filter Modules Part Context

This part belongs to the Curtis Industries F3099 series of RFI filters. These modules are engineered for robust performance in noisy environments. The series typically offers various current ratings and mounting options to suit different power distribution needs across industrial and commercial sectors.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes within the same series offering identical pinouts and electrical ratings. Verify that any replacement maintains the same chassis mounting footprint and voltage/current specifications to ensure compatibility without mechanical modification.
