F36-170

Overview

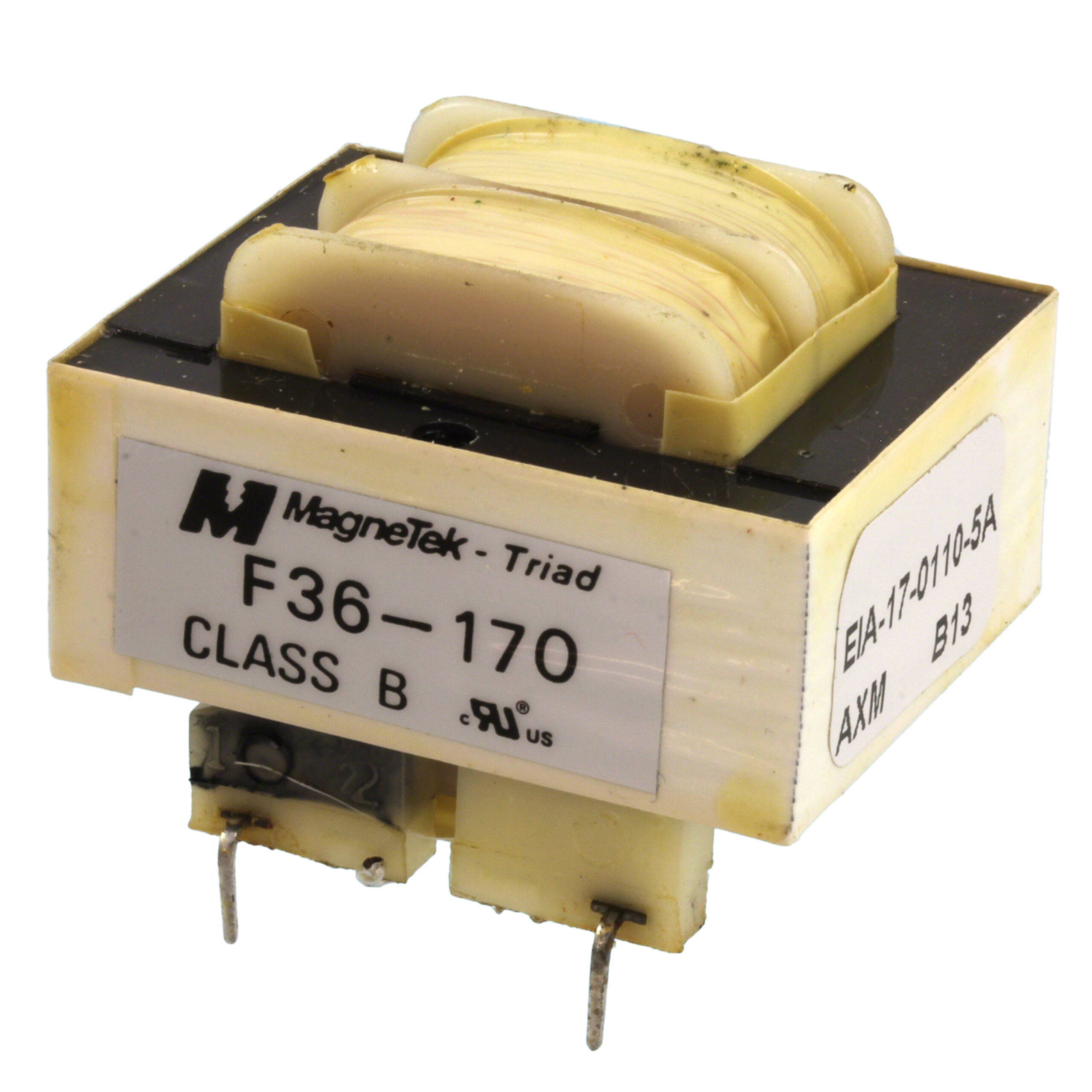

The Triad Magnetics F36-170 is a power transformer featuring a split bobbin design for printed circuit board mounting. It provides a primary voltage of 115V and dual secondary outputs configured as 36.0VCT at 0.170A. The unit has a maximum power rating of 6VA and offers 2500Vrms isolation. It utilizes a laminated core construction with PC pin termination for through-hole installation.

Feature Summary

• Split bobbin architecture designed for versatile PCB applications
• Dual secondary windings providing center-tapped output capability
• Laminated core construction for efficient magnetic coupling

Applications

• Printed circuit board power supply modules
• Electronic equipment requiring isolated AC power stages
• Industrial control systems utilizing split-pack transformers

Procurement Notes

Verify the specific suffix or variant when ordering, as documentation indicates variations such as RoHS compliance status differences between standard and C2 versions. Confirm that the component matches the required split bobbin form factor and that the 115V primary specification aligns with the target input voltage. Ensure the PCB layout accommodates the six-terminal pin configuration and physical dimensions specified in the official datasheet to guarantee proper mechanical fit and electrical connectivity.

Selection Notes

Select this model when a split bobbin topology is required to facilitate winding separation and improve safety isolation on PCBs. The 6VA rating suits low-power applications needing dual secondary voltages. Consider the 2500Vrms isolation level for circuits requiring significant potential difference between primary and secondary sides. Verify that the through-hole PC pin style matches the manufacturing assembly process and that the operating temperature range meets environmental requirements.

Part Context

This component belongs to the Triad Split Pack series, which utilizes nonconcentrically wound bobbins to separate primary and secondary windings physically. This design enhances safety and reduces capacitive coupling compared to traditional concentric windings. The F36-170 specifically addresses applications needing reliable isolation in compact PCB-mounted power supplies, offering a standardized solution for manufacturers designing equipment with strict isolation requirements.
