F36-350

Overview

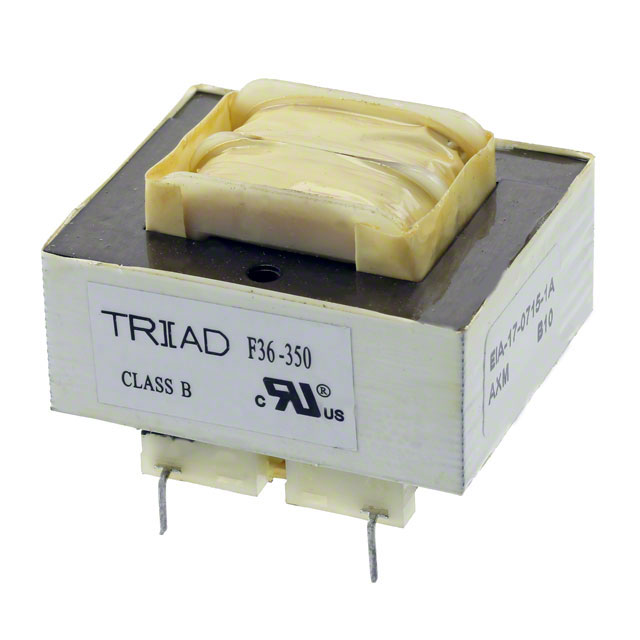

The Triad Magnetics F36-350 is a Split Pack™ power transformer designed for printed circuit board applications. It features a laminated core with dual primary windings rated for 115VAC and dual secondary windings providing 18VAC in parallel or 36VAC in series. The unit delivers a total power rating of 12VA, supporting a maximum current of 700mA in parallel configuration or 350mA in series configuration. Operating at 50Hz/60Hz, it utilizes through-hole termination for secure PCB mounting.

Feature Summary

• Split bobbin design facilitates efficient winding placement and thermal management
• Dual primary windings allow flexible input voltage compatibility
• Configurable secondary outputs support parallel or series connection modes

Applications

• Industrial control panel power supplies
• Medical device internal power systems
• Consumer electronics AC-DC conversion stages

Procurement Notes

Verify the specific suffix (e.g., -C2) against the datasheet to confirm terminal style and insulation class. Ensure the selected variant matches the required PCB footprint and lead configuration. Confirm regulatory certifications such as UL/CUL are present for the target market. Check shipping restrictions due to component weight if applicable.

Selection Notes

Select this model when a compact, low-power transformer with configurable output voltage is required. The split bobbin architecture offers superior isolation compared to standard laminated cores. Consider the 12VA limit when designing circuits requiring stable performance under load. Verify that the through-hole leads align with the assembly process.

Part Context

This component belongs to the Triad Magnetics Split Pack™ series, which specializes in versatile transformers for PC board integration. The series emphasizes compact form factors and reliable electrical isolation for industrial and commercial applications. It serves as a critical interface between mains voltage and low-voltage control circuits.

Replacement Considerations

The FS36-350-C2 is a documented alternative within the same manufacturer lineup. Both share similar electrical ratings but may differ in packaging or specific certification details. Verify mechanical dimensions and pinout compatibility before substitution.
