Product Detailed Parameters
- Description：IGBT MOD 650V 200A 680W
- Series：EconoPACK™ 4
- Mfr：Infineon Technologies
- Package：Bulk,Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：1.95V @ 15V, 200A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：650 V
- Current - Collector (Ic) (Max)：200 A
- Power - Max：680 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：12.5 nF @ 25 V
Download product information
Overview

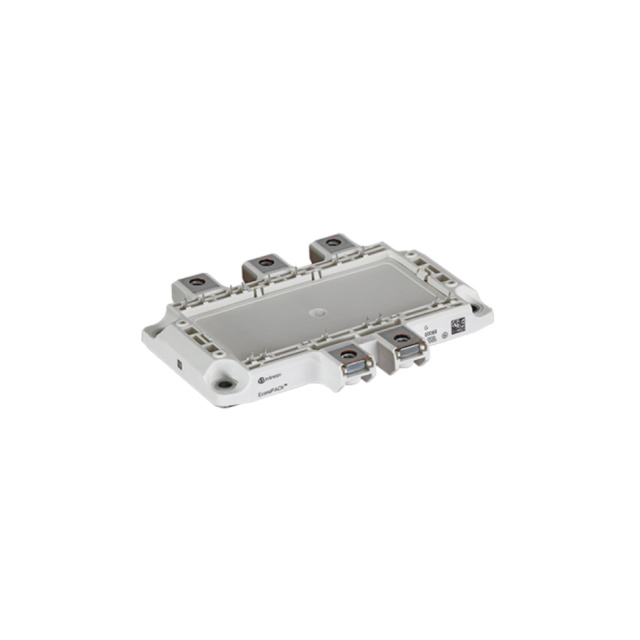

The F3L200R07PE4BOSA1 is a Trench/Fieldstop IGBT4 and Emitter Controlled 4 diode module in an EconoPACK™4 package. It features an integrated NTC temperature sensor and an isolated base plate. The collector-emitter voltage (VCES) is 650 V, with a continuous DC collector current (IC nom) of 200 A at TC = 80°C. The repetitive peak collector current (ICRM) reaches 400 A for 1 ms pulses. The typical collector-emitter saturation voltage (VCEsat) is 1.55 V at Tvj = 25°C. Operating junction temperatures range from -40°C to 150°C.
Feature Summary
- Trench/Fieldstop IGBT4 technology combined with Emitter Controlled 4 diodes
- Integrated NTC temperature sensor for thermal monitoring
- Isolated base plate design with high mechanical robustness
- Extended operation temperature capability up to 150°C
Applications
- 3-Level inverter applications
- Industrial motor drives
- Uninterruptible power supplies (UPS)
Procurement Notes
Verify the specific ordering suffix BOSA1 against official Infineon documentation to confirm exact configuration details. Ensure compatibility with standard mounting torque specifications for M5 and M6 screws as defined in application notes. Confirm isolation test voltage requirements match system safety standards before procurement.
Selection Notes
Select this component for designs requiring 650 V blocking capability and 200 A continuous current handling. Consider the positive temperature coefficient of VCEsat for parallel operation stability. Evaluate thermal resistance values for heatsink sizing based on expected switching frequencies and ambient conditions.
Part Context
This module belongs to the EconoPACK™4 series utilizing IGBT4 technology. It is designed for high-efficiency power conversion systems. The series emphasizes compact packaging with enhanced electrical isolation and thermal performance suitable for demanding industrial environments.
Replacement Considerations
Consult official Infineon cross-reference guides for verified substitutes. Ensure any replacement maintains identical pinout, thermal characteristics, and voltage/current ratings. Verify that alternative modules support the required 3-level topology if applicable.
