F4-10

Overview

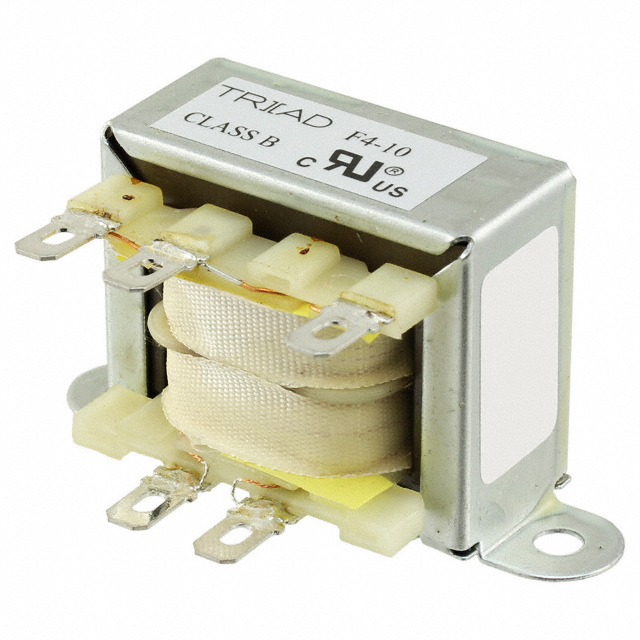

The Triad Magnetics F4-10 is a laminated core power transformer designed for chassis mounting. It features a split bobbin construction and quick connect termination style with 0.187-inch (4.7mm) terminals. The unit provides a 6VA power rating with an isolation voltage of 2500VAC. Electrical specifications include a 115V primary input and a 10V secondary output, delivering a current rating of 600mA. The device supports 50Hz and 60Hz frequencies and carries UL approval agency certification.

Feature Summary

• Compact size and weight reduction relative to standard VA ratings
• Split bobbin design for enhanced electrical isolation
• Chassis mount configuration for secure installation
• Quick connect termination style for simplified wiring

Applications

• Industrial control equipment power supplies
• General purpose electronic device power conversion
• Chassis-mounted AC to low-voltage DC power stages

Procurement Notes

Verify the specific termination style matches the PCB or wire harness requirements, as quick connect pins must align with mating receptacles. Confirm that the 115V primary voltage rating is compatible with the local mains supply frequency and amplitude. Ensure the chassis mounting holes correspond to the physical dimensions specified in the official datasheet to guarantee proper mechanical fit and thermal management within the enclosure.

Selection Notes

Select this component when space constraints require a smaller footprint compared to traditional transformers of equivalent power handling capability. The split bobbin architecture is suitable for applications demanding high isolation integrity between primary and secondary circuits. Consider the 6VA limit and 600mA output current to ensure the load does not exceed thermal or electrical ratings during continuous operation under maximum ambient temperature conditions.

Part Context

The F4-10 belongs to Triad Magnetics' Quick Pack series, which focuses on miniaturization without sacrificing performance. This series offers significant reductions in both physical size and weight for given VA ratings compared to conventional designs. The F4-10 specifically utilizes a laminated core structure to maintain efficiency while supporting the compact form factor required for modern dense electronic assemblies.

Replacement Considerations

Direct substitutes must match the 6VA rating, 115V primary/10V secondary configuration, and chassis mount style. Verify that alternative components support the same 2500VAC isolation voltage and quick connect terminal spacing to ensure interchangeability without modifying the existing circuit board layout or enclosure.
