F4-16

Overview

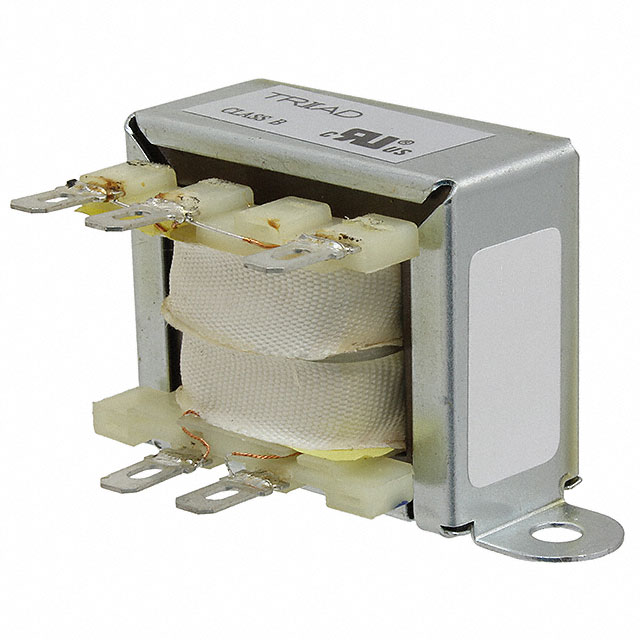

The Triad Magnetics F4-16 is a split-pack power transformer designed for low-voltage step-down applications. It features a laminated core construction with a single primary winding rated for 115V input. The secondary output provides 16VCT at a current rating of 0.375A, resulting in a 6VA power rating. This component offers 4kV dielectric isolation and includes lugs for chassis mounting.

Feature Summary

• Toroidal-style construction enabling smaller physical dimensions compared to standard EI transformers
• Provides robust 4kV dielectric isolation between primary and secondary windings
• Features a split-pack design suitable for compact electronic equipment integration

Applications

• Low-voltage AC power supply systems
• Chassis-mounted electronic enclosures requiring isolated power
• General-purpose signal conditioning or control circuitry power sources

Procurement Notes

Verify the specific voltage configuration (16VCT) and current rating (0.375A) against system requirements before ordering. Confirm that the lug mounting style aligns with the mechanical design constraints. Ensure compliance with RoHS3 standards if required by the project specifications. Cross-reference the datasheet for thermal dissipation limits under continuous load conditions.

Selection Notes

Select this model when space constraints preclude the use of larger EI transformers but isolation requirements remain critical. The 6VA rating suits light loads; ensure the application does not exceed the 0.375A secondary current limit. Consider the split-pack form factor for ease of assembly within confined chassis spaces compared to solid-core alternatives.

Part Context

This component belongs to the Triad Magnetics F4 series of split-pack power transformers. These units are engineered to provide reliable isolation in compact footprints. The series typically supports various voltage configurations while maintaining consistent safety standards and mounting options for industrial and commercial electronics.

Replacement Considerations

Direct substitutes include other Triad Magnetics models within the F4 series offering identical 6VA ratings and 16VCT outputs, such as variants with different primary voltages if the input supply differs. Verify that any replacement maintains the same 4kV isolation rating and lug mounting interface.
