F4-24

Overview

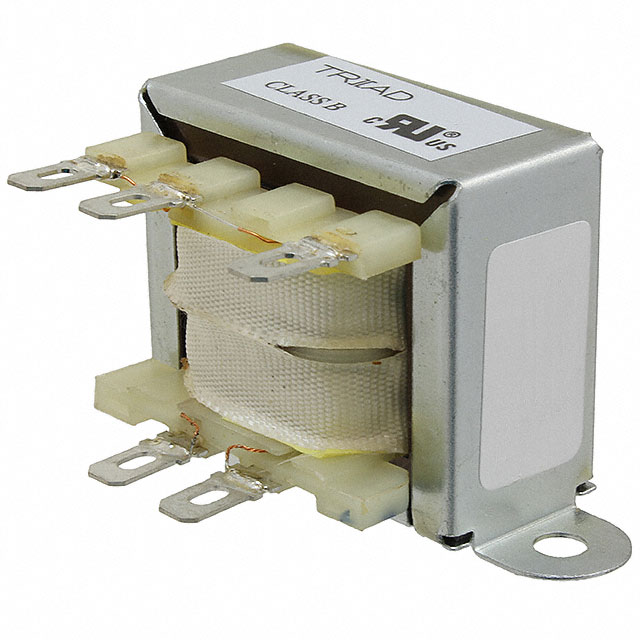

The Triad Magnetics F4-24 is a laminated core power transformer designed for industrial control applications. It features a 115V primary winding and a 24.0V secondary output at 0.250A, resulting in a 6VA power rating. The unit utilizes a chassis mount configuration with quick connect terminals and flanges for secure installation. Key electrical specifications include a 2500VAC isolation voltage between windings. The transformer is constructed using a bobbin-wound design to minimize physical footprint while maintaining operational efficiency within standard industrial environments.

Feature Summary

• Chassis mount construction with integrated flanges for panel or frame attachment
• Laminated core design optimized for reduced size and operating space
• Bobbin-wound architecture ensuring structural integrity and compact form factor
• Quick connect terminal style facilitating straightforward wiring integration

Applications

• Industrial control panels requiring isolated power supply stages
• Equipment utilizing 24V DC rectified power from AC mains
• Chassis-mounted electronic enclosures with limited spatial constraints
• General purpose industrial machinery control circuits

Procurement Notes

Verify that the specific order suffix matches the required terminal type and insulation class. Confirm that the 115V primary voltage aligns with the local mains supply frequency and amplitude. Ensure the chassis mounting holes correspond to the mechanical dimensions provided in the official datasheet. Check for any regional shipping restrictions related to product weight or size before finalizing procurement orders.

Selection Notes

Select this component when a low-power 6VA isolation stage is required for 24V secondary applications. The chassis mount style is appropriate for fixed installations where vibration resistance is managed by the mounting hardware. Consider the quick connect termination if wire harnessing is preferred over soldered leads. Validate that the 2500VAC isolation rating meets the safety requirements of the target equipment design.

Part Context

This part belongs to the Triad Magnetics F series of industrial power transformers. The series offers various power ratings and secondary voltages tailored for different control circuit needs. The F4-24 specifically addresses the need for compact, low-voltage power conversion in industrial settings. It complements higher capacity models within the same family by providing a solution for smaller load requirements.

Replacement Considerations

Direct substitutes must match the 6VA rating, 115V primary, and 24V secondary specifications. Verify that alternative components support chassis mounting with compatible flange dimensions. Ensure the replacement maintains the 2500VAC isolation voltage and quick connect terminal style. Cross-reference pinouts and electrical characteristics to guarantee functional equivalence in the existing circuit design.
