F47NBAAB-G150U

$6.80

Description：LTE FLEX ANTENNA
Series：Profile Contour
Mfr：Airgain
Package：Bag

SKU:90cfbec141be Category: RF Antennas Brand: Airgain

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

F47NBAAB-G150U is listed in the Antennas RF range at ChipApex. The manufacturer field lists Airgain. Its product description is LTE FLEX ANTENNA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for F47NBAAB-G150U

Description：LTE FLEX ANTENNA
Series：Profile Contour
Mfr：Airgain
Package：Bag
RF Family/Standard：Cellular
Frequency Group：-
Frequency (Center/Band)：-
Frequency Range：698MHz ~ 960MHz, 1.55GHz ~ 1.61GHz, 1.7GHz ~ 2.7GHz
Antenna Type：FlexPIFA
Number of Bands：4
VSWR：01:02.5
Return Loss：-
Gain：2.9dBi, 2.5dBi, 3.7dBi, 2.9dBi
Features：Cable - 150mm
Termination：U.FL
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：-
Applications：2G, 3G, 4G, LTE
Power - Max：-

Antennas RF datasheet and documents for F47NBAAB-G150U

F47NBAAB-G150U

Antennas RF Overview

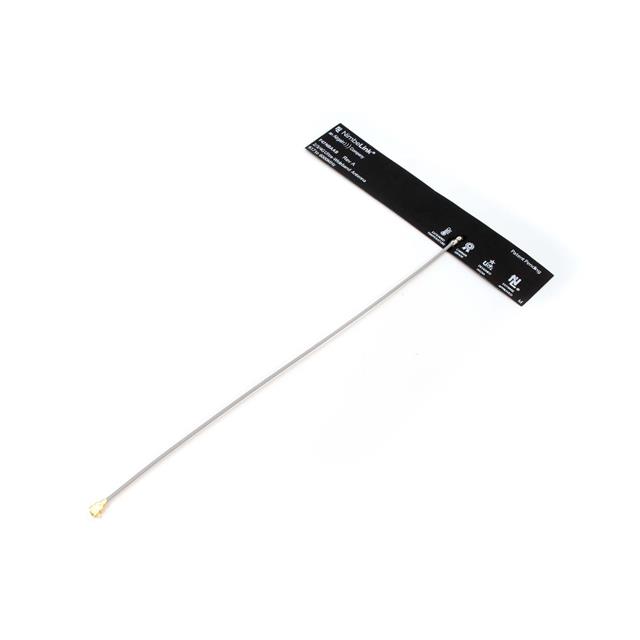

The Airgain F47NBAAB-G150U is a cellular flex PCB antenna designed for LTE and 4G applications. It operates within frequency ranges of 698MHz to 960MHz, 1.55GHz to 1.61GHz, and 1.7GHz to 2.7GHz. The component features a U.FL connector and includes a 150mm cable. Physical dimensions are 105 x 20 x 0.105 mm with a grey finish.

Antennas RF Feature Summary

Flex PIFA design for compact integration
Multi-band cellular support
Adhesive mounting capability

Antennas RF Applications

LTE module integration
4G IoT devices
Mobile broadband terminals

Antennas RF Procurement Notes

Verify the specific datasheet version for impedance and gain specifications before finalizing the design. Confirm that the U.FL connector orientation matches the target PCB layout. Ensure the adhesive backing is compatible with the enclosure material to maintain signal integrity and mechanical stability during operation.

Antennas RF Selection Notes

Select this model when space constraints require a low-profile flex antenna solution. The multi-band coverage supports various global LTE standards. Consider the 150mm cable length for routing flexibility within the device chassis while maintaining signal performance.

Antennas RF Part Context

This part belongs to Airgain's Profile Contour series, which focuses on slim form factors for modern electronic devices. Airgain provides wireless connectivity solutions for consumer, enterprise, and automotive markets, emphasizing reliable RF performance in compact packages.
