Product Detailed Parameters
- Description：PWR XFMR LAMINATED 12VA CHAS MT
- Series：Quick Pack
- Mfr：Triad Magnetics
- Package：Bulk
- Type：Laminated Core
- Voltage - Primary：115V
- Voltage - Secondary (Full Load)：10V
- Current - Output (Max)：1.2A
- Primary Winding(s)：Single
- Secondary Winding(s)：Single
- Center Tap：Yes
- Power - Max：12VA
- Mounting Type：Chassis Mount
- Termination Style：Solder, Quick Connect - 0.187" (4.7mm)
- Size / Dimension：71.42mm L x 34.93mm W
- Height - Seated (Max)：41.28mm
- Voltage - Isolation：2500VAC
- Weight：0.7 lb (317.51 g)
Download product information
Overview

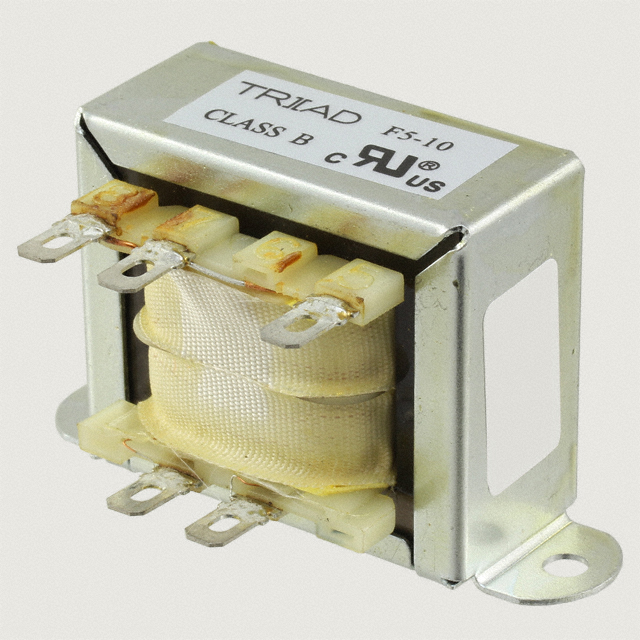

The Triad Magnetics F5-10 is an industrial power transformer designed for chassis mounting. It features a bobbin-wound construction to minimize size and operating space. The unit accepts a primary voltage of 115V AC and provides a secondary output of 10.0V at 1.2A, resulting in a 12VA power rating. It includes high potential isolation of 2500VAC between windings. Termination is achieved via quick connect lugs with a 0.187-inch (4.7mm) width. The physical dimensions are approximately 71.42mm in length and 34.93mm in width.
Feature Summary
- Bobbin wound design for reduced size and compact operating space
- Chassis mount installation style with quick connect termination
- UL/cUL certified for industrial control applications
Applications
- Industrial control systems
- General purpose power supply circuits
- Equipment requiring isolated AC power conversion
Procurement Notes
Verify the specific secondary current rating required for your application against the datasheet specifications. Confirm that the quick connect lug dimensions match your wiring harness or terminal block interface. Ensure the chassis mounting holes align with the transformer's physical footprint before finalizing the procurement order.
Selection Notes
Select this model when a compact, bobbin-wound transformer is needed for 115V primary input. The 12VA rating suits low-power industrial controls. Consider the chassis mount requirement and quick connect termination style as critical selection factors over other mounting types or solder terminations available in the product family.
Part Context
The F5-10 belongs to the Triad Magnetics F5 series of industrial power transformers. This series offers various sizes to accommodate different power requirements while maintaining a consistent bobbin-wound architecture. The F5-10 specifically targets applications requiring 10V output at moderate current levels within a constrained physical envelope.
Replacement Considerations
The Triad Magnetics F5-12 serves as a functional substitute within the same series, offering identical physical dimensions and mounting characteristics but providing a 12.6V center-tapped output instead of the 10V single output.
