F5-24

Overview

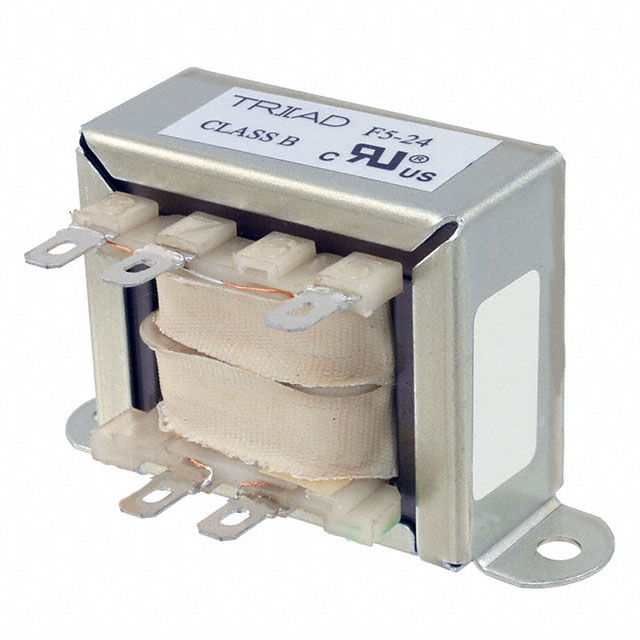

The Triad Magnetics F5-24 is a laminated core power transformer designed for industrial control applications. It features a 115V primary winding and a single 24V secondary output rated at 500mA, delivering a total power capacity of 12VA. The unit utilizes chassis mount installation with flanges and panel compatibility. Electrical termination is achieved via five quick connect terminals. The device complies with UL and cUL safety standards.

Feature Summary

• Chassis mount construction with integrated mounting flanges
• Laminated core design for standard power transformation
• Quick connect terminal configuration for simplified wiring

Applications

• Industrial control panels
• Equipment requiring isolated low voltage DC power supplies
• General purpose power distribution in machinery

Procurement Notes

Verify the specific datasheet version to confirm insulation class and regulatory compliance status prior to integration. Ensure that the mechanical dimensions align with the available chassis space. Confirm that the quick connect terminal pitch matches the mating connector specifications on the target circuit board or wiring harness to prevent assembly errors.

Selection Notes

Select this component when a 12VA isolation barrier is required between 115V AC mains and a 24V load. The chassis mount style is suitable for open-frame installations where direct panel attachment is preferred over PCB mounting. Consider thermal dissipation requirements within the enclosure due to the iron core construction.

Part Context

This transformer belongs to the F5 series from Triad Magnetics, which focuses on general-purpose industrial control transformers. The series provides various voltage configurations and power ratings tailored for equipment manufacturing. The F5-24 specifically addresses the common need for 24VAC step-down conversion in compact industrial enclosures.

Replacement Considerations

No public substitute part numbers are confirmed.
