F5-36

Overview

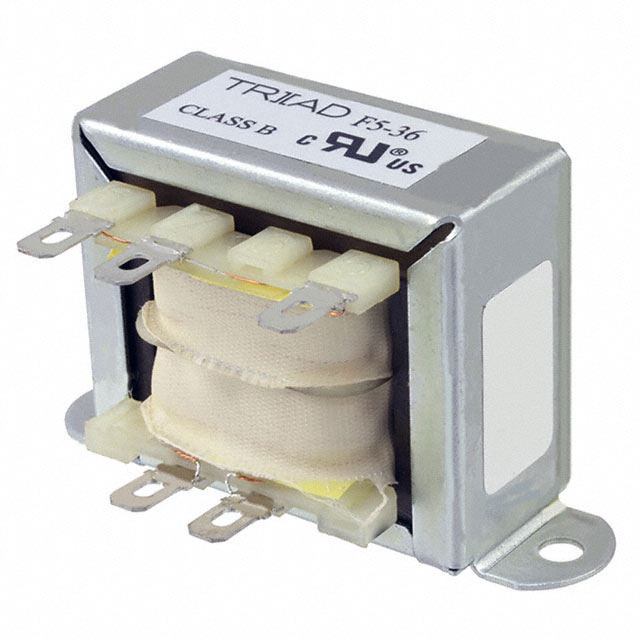

The Triad Magnetics F5-36 is a laminated core power transformer designed for chassis mounting. It features dual primary windings rated for 115V and 230VAC input, providing versatile compatibility with standard line voltages. The secondary output delivers 36.0Vct at 0.350A, resulting in a 12VA power rating. This component utilizes quick connect terminals with lugs for secure electrical connections and includes UL/cUL certification for safety compliance.

Feature Summary

• Dual primary winding configuration supports both 115V and 230VAC operation
• Chassis mount design with integrated lugs for mechanical stability
• Quick connect terminal style facilitates efficient circuit integration

Applications

• Industrial control panels requiring isolated power supplies
• Audio equipment power stages needing specific voltage regulation
• General purpose electronic enclosures with chassis mounting requirements

Procurement Notes

Verify the specific terminal configuration matches the target chassis layout, as this model uses quick connect lugs rather than through-hole pins. Confirm that the 12VA rating meets the load requirements of the application. Ensure the input voltage selection aligns with the available line voltage to prevent improper winding connection. Check for any regional safety certification requirements beyond the standard UL/cUL listing.

Selection Notes

Select this model when a compact, chassis-mounted solution is required for low-power applications. The dual primary winding offers flexibility for global deployment without changing hardware. Consider the physical dimensions and lug placement during the mechanical design phase. Compare against PCB-mount alternatives if space constraints differ significantly from chassis-based designs.

Part Context

This component belongs to the Quick Pack series by Triad Magnetics, which focuses on industrial-grade transformers. The series emphasizes durability and standardized mounting options for easy integration into larger systems. The F5-36 represents a specific power level within this lineup, balancing size and output capability for common industrial tasks.

Replacement Considerations

Direct substitutes may include other 12VA chassis-mount transformers with identical 36Vct secondary ratings. Verify that alternative parts support the same dual primary voltage range and utilize compatible quick connect terminals. Mechanical footprint and lug spacing must match to ensure proper installation without modification.
