F56NBAAA-G150U

$4.25

Description：LTE FLEX ANTENNA
Series：Profile Contour
Mfr：Airgain
Package：Bag

SKU:300dde7604c5 Category: RF Antennas Brand: Airgain

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

F56NBAAA-G150U is listed in the Antennas RF range at ChipApex. The manufacturer field lists Airgain. Its product description is LTE FLEX ANTENNA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for F56NBAAA-G150U

Description：LTE FLEX ANTENNA
Series：Profile Contour
Mfr：Airgain
Package：Bag
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：-
Frequency Range：617MHz ~ 960MHz, 1.7GHz ~ 6GHz
Antenna Type：FlexPIFA
Number of Bands：7
VSWR：01:02.5
Return Loss：-
Gain：1.7dBi, 3.5dBi, 3dBi, 4.2dBi, 4dBi, 5.1dBi, 6.9dBi
Features：-
Termination：U.FL
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：-
Applications：2G, 3G, 4G, 5G, LTE
Power - Max：-

Antennas RF datasheet and documents for F56NBAAA-G150U

F56NBAAA-G150U

Antennas RF Overview

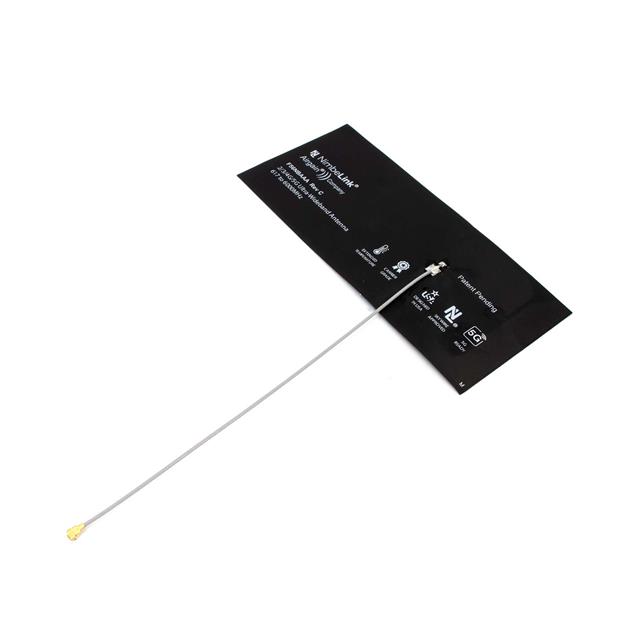

The Airgain F56NBAAA-G150U is a FlexPIFA cellular antenna designed for wideband applications. It operates within frequency ranges of 617MHz to 960MHz and 1.7GHz to 6GHz, supporting 2G, 3G, 4G LTE, and 5G standards. The component features an adhesive mounting type and includes a 150mm cable terminated with a U.FL connector. Physical dimensions are 122.5 x 56 x 0.185 mm. Gain values vary across bands, ranging from 1.7dBi to 6.9dBi.

Antennas RF Feature Summary

FlexPIFA design optimized for small plastic enclosures
Wideband coverage for multiple cellular generations
Integrated adhesive mounting for secure installation

Antennas RF Applications

Cellular IoT devices
Small plastic enclosures
NimbeLink Skywire systems

Antennas RF Procurement Notes

Verify the specific datasheet version when ordering, as manufacturer branding may have transitioned from NimbeLink to Airgain. Confirm that the U.FL connector orientation and cable length meet the target device's spatial constraints. Ensure the adhesive backing is compatible with the intended enclosure material for reliable attachment during deployment.

Antennas RF Selection Notes

Select this model for applications requiring a low-profile solution in compact plastic housings. The wide frequency range supports diverse global cellular standards. Consider the fixed 150mm cable length and U.FL interface when designing the internal layout. Verify gain requirements against specific band usage to ensure adequate signal performance.

Antennas RF Part Context

This component belongs to the Airgain (formerly NimbeLink) Flex Antenna series. It is engineered specifically for embedded wireless connectivity in constrained spaces. The product line focuses on providing carrier-grade performance for IoT and mobile broadband devices without compromising enclosure aesthetics or size.
