F66G12WK

Overview

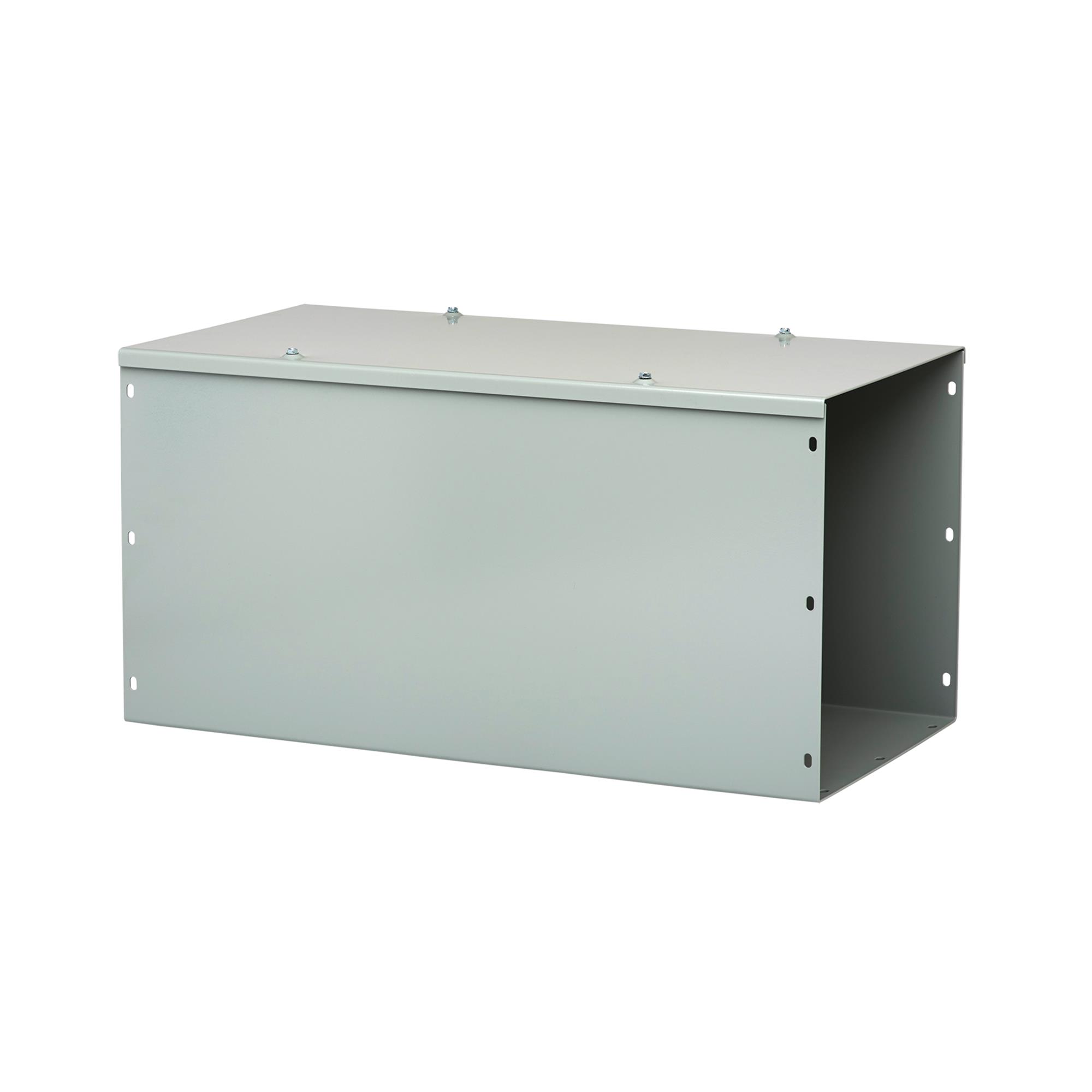

The F66G12WK is a straight section wireway manufactured by Hoffman Enclosures, Inc. It features a 6-inch height and 6-inch width with a 12-inch length. Constructed from 16-gauge steel, the unit includes a hinged cover and four knockouts for cable entry. The exterior finish is ANSI 61 gray polyester powder paint, providing corrosion resistance. This component is designed as an open-top wiring trough to protect wires and cables in various indoor and outdoor environments.

Feature Summary

• Hinged liftoff cover design facilitates easy access for cable installation and maintenance
• ANSI 61 gray polyester powder painted finish provides corrosion resistance
• Includes multiple knockouts for flexible cable routing options

Applications

• Indoor industrial wiring protection
• Outdoor cable management in corrosive environments
• Commercial electrical distribution systems

Procurement Notes

Verify that the specific order matches the F66G12WK part number to ensure correct dimensions of 6x6x12 inches. Confirm material specifications are 16-gauge steel and the finish is ANSI 61 gray. Check for required certifications such as UL 870 and CUL compliance based on local regulatory requirements before finalizing procurement.

Selection Notes

Select this model when a straight section wireway with a hinged cover is required for 6x6 inch applications. Ensure the environment supports steel construction and NEMA Type 1 rating. Consider the 12-inch length for short runs or modular expansion within larger trunking systems.

Part Context

This product belongs to the Hoffman Lay-In series of wireways. It is designed to integrate with other components in the same series for continuous cable management solutions. The straight section format allows for linear cable routing between junction points or equipment.

Replacement Considerations

No public confirmed substitute part numbers are available.
