F6FC1G197H4PF-J

Overview

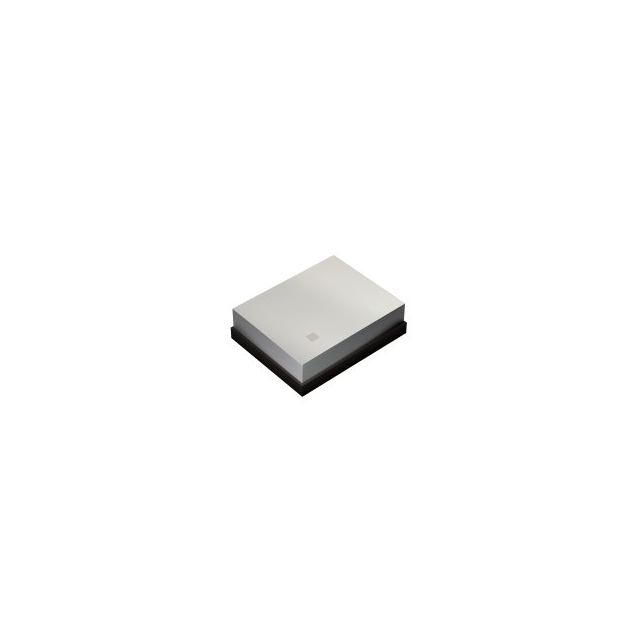

The F6FC1G197H4PF-J is a Surface Acoustic Wave (SAW) filter manufactured by Taiyo Yuden, designed for RF signal conditioning in the 1 GHz to 5 GHz frequency range. It features a center frequency of 1.197 GHz and operates with a 50 Ohm impedance. The component utilizes a 5-pin SMD/No Lead package with dimensions of 1.1 mm x 0.9 mm x 0.5 mm. It supports board mount installation via SMD/SMT termination and functions within an operating temperature range of -30°C to +85°C.

Feature Summary

• Surface Acoustic Wave technology for precise RF filtering
• Optimized for GPS frequency band applications
• Compact surface-mount design for space-constrained PCBs

Applications

• GPS receiver front-end modules
• Mobile communication devices
• RF signal conditioning circuits

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels due to potential counterfeit risks. Confirm RoHS compliance status via official documentation before integration. Ensure storage conditions adhere to specified humidity and temperature limits to maintain performance integrity during handling and assembly processes.

Selection Notes

Select this component when a compact SAW filter is required for GPS-specific frequency bands around 1.2 GHz. Consider the 5-pin no-lead package for automated surface-mount assembly compatibility. Evaluate thermal performance requirements against the -30°C to +85°C operational range to ensure reliability in target environments.

Part Context

This part belongs to the Taiyo Yuden F6 series of SAW filters, which are engineered for mobile communications and general electronic equipment. The series emphasizes miniaturization and high-frequency performance, catering to the demands of modern wireless devices requiring efficient signal processing in small form factors.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official Taiyo Yuden documentation for current alternatives or contact the manufacturer directly for cross-reference information regarding end-of-life or obsolescence management.
