F6QG2G655P2KE-J

Overview

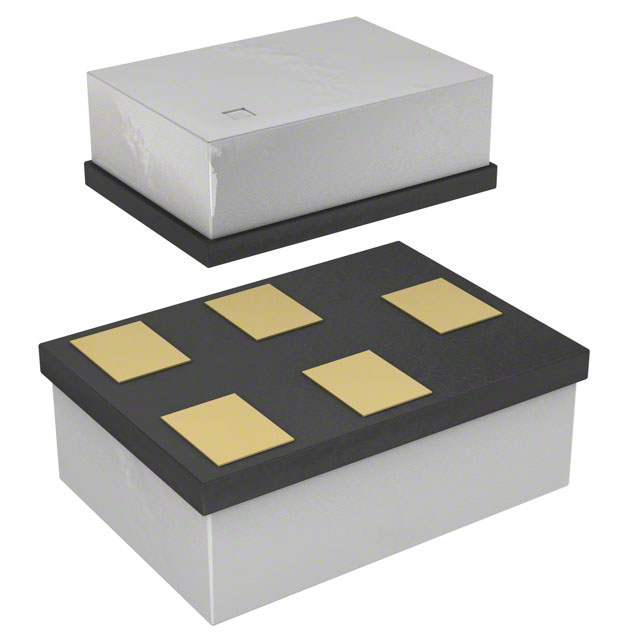

The F6QG2G655P2KE-J is a Surface Acoustic Wave (SAW) filter manufactured by Taiyo Yuden, designed for signal conditioning in the 1 GHz to 5 GHz frequency range. It utilizes a 5-pin SMD/SMT package with dimensions of 1.1 mm x 0.9 mm x 0.5 mm. The component operates within a temperature range of -30°C to +85°C and features a 50 Ohm impedance. It is part of the F6 series and is supplied in reel packaging.

Feature Summary

• Provides RF signal filtering using SAW technology
• Designed for compact surface-mount integration
• Supports operation across standard industrial temperature ranges

Applications

• Mobile phone RF front-ends
• WCDMA wireless communication systems
• General-purpose signal conditioning circuits

Procurement Notes

Verify the exact suffix against official Taiyo Yuden documentation, as distributors may list variations such as P2KA or P2KE. Confirm current lifecycle status, as some sources indicate End-of-Life or Not Recommended for New Design statuses for related variants. Ensure compatibility with specific board mounting requirements and check for any Product Change Notifications that may affect specifications.

Selection Notes

Select this component when a compact SAW filter is required for frequencies around 2.14 GHz with low insertion loss. Compare physical dimensions against available PCB footprint space. Verify thermal performance limits against the target application environment. Cross-reference suggested alternates like FSSCSR5T2G60M2RM-AJ if availability is constrained.

Part Context

This device belongs to the Taiyo Yuden F6 series of SAW filters, which are engineered for high-frequency applications. These components are integral to modern wireless communication hardware, providing necessary signal isolation and noise reduction in dense electronic assemblies.

Replacement Considerations

Officially suggested alternates include FSSCSR5T2G60M2RM-AJ. Verify electrical parameter equivalence before substitution.
