F88TGV

Overview

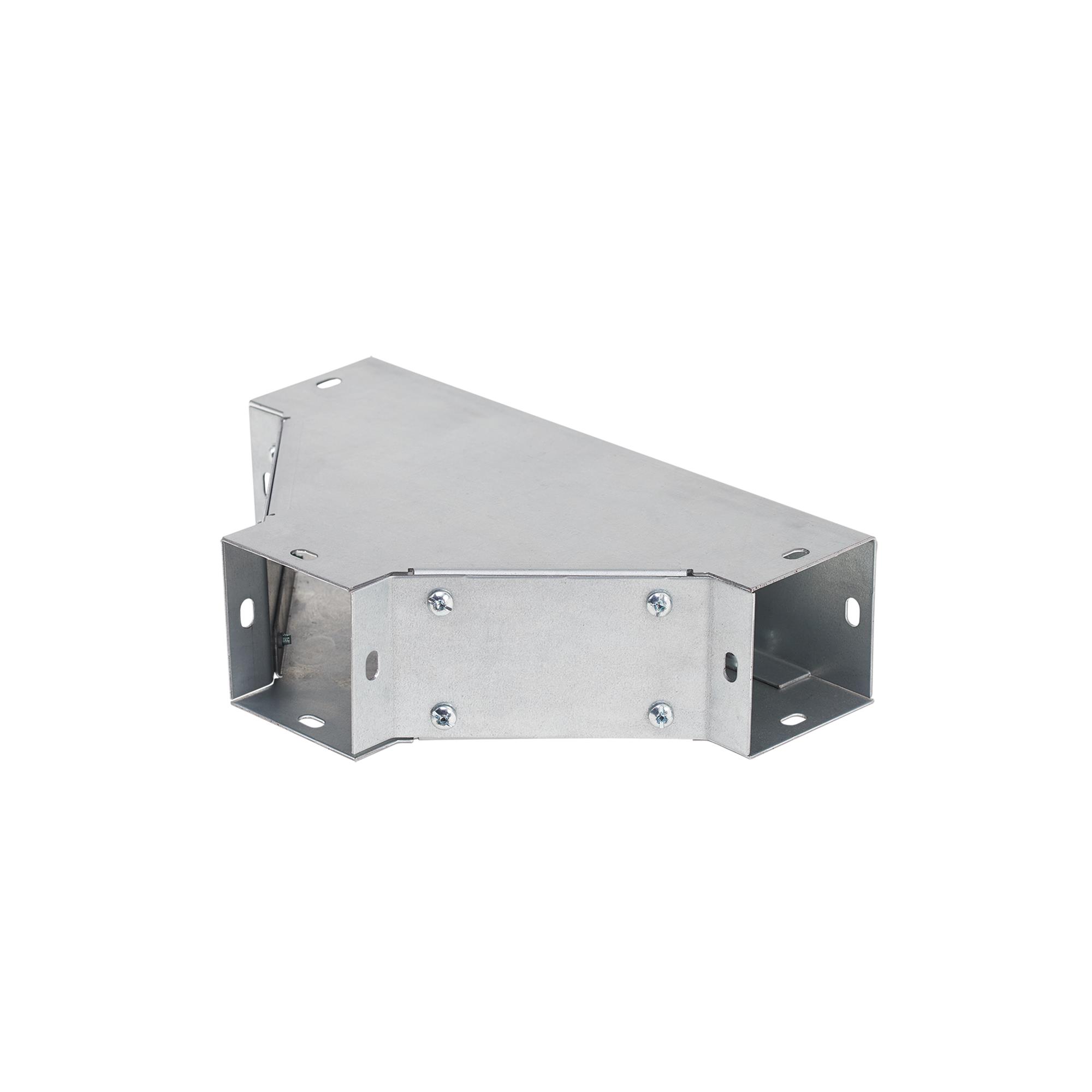

The Hoffman Enclosures Inc. F88TGV is an 8-inch by 8-inch galvanized steel sweep tee fitting designed for use with NEMA Type 1 lay-in wireway systems. This component facilitates large radius turns in cable management runs, allowing wires and cables to be laid directly into the wireway channel. The unit features removable top and inside covers for easy access during installation and maintenance. It is constructed from steel with a galvanized finish to provide corrosion resistance. The fitting is engineered to mount securely against either vertical or horizontal surfaces, ensuring structural stability within industrial electrical enclosures.

Feature Summary

• Provides large radius turns for smooth cable routing
• Features removable top and inside covers for accessibility
• Designed for surface mounting on vertical or horizontal planes

Applications

• NEMA Type 1 indoor electrical enclosure cable management
• Industrial control panel wiring infrastructure
• Large diameter cable routing transitions

Procurement Notes

Verify that the required fitment matches the 8x8 inch dimensions specified for this sweep tee. Confirm compatibility with existing NEMA 1 lay-in wireway series components. Ensure the galvanized steel construction meets the environmental protection requirements of the intended indoor installation area. Check that the mounting surface orientation aligns with the design intent for vertical or horizontal attachment.

Selection Notes

Select this component when a 90-degree transition with a large bending radius is required for 8x8 inch wireway runs. Choose this part over standard elbows if cable pulling tension must be minimized. Ensure the application environment is indoors, as the NEMA 1 rating does not support outdoor exposure. Verify that the galvanized finish is sufficient for the specific humidity levels present in the installation location.

Part Context

This fitting belongs to the Hoffman lay-in wireway accessory family, specifically the sweep tee category. It complements straight sections and other directional fittings to create complex cable routing paths within electrical cabinets. The product line emphasizes ease of installation through the lay-in design, reducing the need for extensive cutting or splicing during initial setup phases.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Replacement should involve sourcing identical F88TGV units to maintain dimensional and material consistency within the wireway system.

FAQ

What type of bend does the F88TGV provide?

It provides a large radius turn, specifically a 90-degree sweep bend.

Can the F88TGV be mounted on both vertical and horizontal surfaces?

Yes, it is designed to mount against either vertical or horizontal surfaces.
