FA-128 24.00M-J0MMMMG60RE7

Crystals Overview

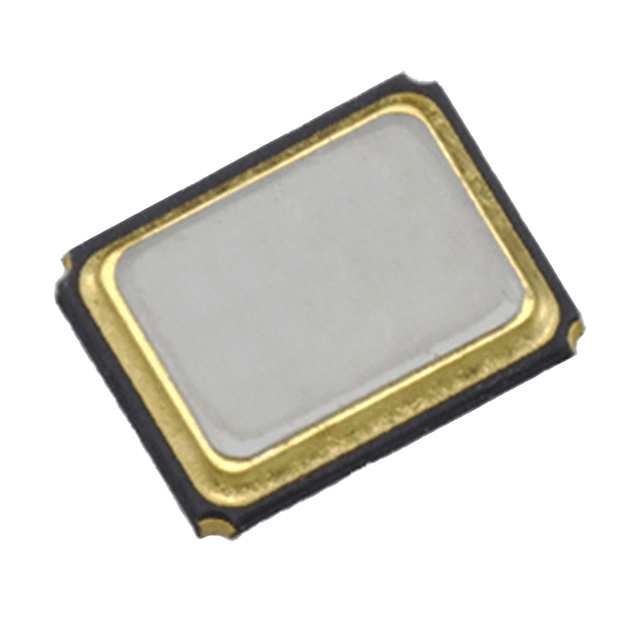

The FA-128 24.00M-J0MMMMG60RE7 is a surface-mount crystal unit manufactured by EPSON, designed for high-frequency applications. It operates at a nominal frequency of 24 MHz with a frequency stability of ±30 ppm. The component features a load capacitance of 18 pF and an equivalent series resistance (ESR) of 60 Ohms maximum. It utilizes a 4-SMD, No Lead package configuration, ensuring compatibility with automated assembly processes. The device supports an operating temperature range from -40°C to +85°C, providing reliable performance in diverse environmental conditions.

Crystals Feature Summary

• Ultra-miniature size with low profile SMD design for compact PCB layouts
• High frequency stability suitable for precise clock reference requirements
• Robust thermal performance across extended industrial temperature ranges

Crystals Applications

• Reference clock for communication modules
• Clock generation for microprocessors
• Timing circuits in portable electronic devices

Crystals Procurement Notes

Verify the complete part number including suffixes against official Epson documentation to ensure correct specifications. Confirm package type and frequency tolerance match project requirements. Check datasheet for reflow soldering profiles and storage conditions. Ensure compliance with RoHS directives if required. Validate availability through authorized distributors only.

Crystals Selection Notes

Select this component when a 24 MHz reference signal with ±30 ppm stability is required. Consider the 18 pF load capacitance for circuit matching. Evaluate the 60 Ohm ESR against oscillator circuit constraints. Assess the 4-SMD package suitability for manufacturing capabilities. Verify temperature range meets operational environment needs.

Crystals Part Context

The FA-128 series represents EPSON's ultra-miniature crystal units optimized for modern electronics. These components provide stable frequency references in small form factors. The 24 MHz variant serves as a common clock source for various digital systems. The series emphasizes reliability and precision for demanding applications.

Crystals Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify electrical parameters match exactly before replacement. Ensure package dimensions are compatible with existing footprints.
