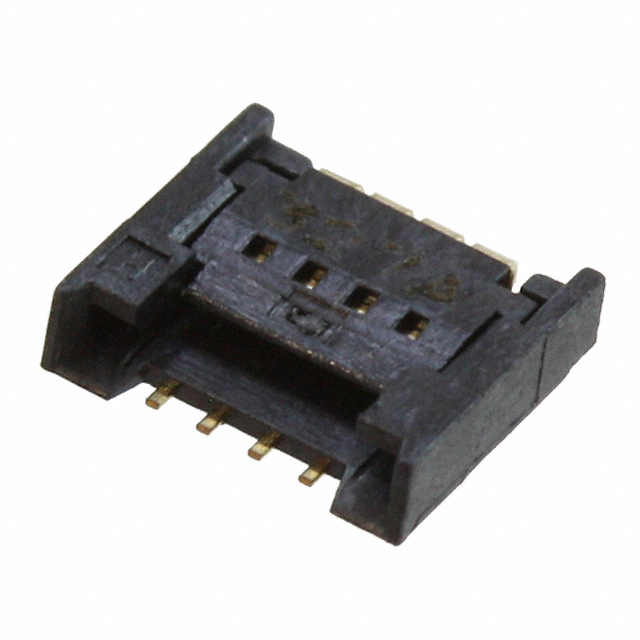

FA1004SA1-R8000

FA1004SA1-R8000 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists JAE Electronics. Its product description is CONN FPC 4POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FA1004SA1-R8000

• Description：CONN FPC 4POS 0.5MM R/A
• Series：FA10
• Mfr：JAE Electronics
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top and Bottom
• Number of Positions：4
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.20mm
• Height Above Board：0.035" (0.88mm)
• Locking Feature：-
• Cable End Type：Tabbed
• Contact Material：Copper Alloy
• Contact Finish：Gold
• Housing Material：Plastic
• Actuator Material：Plastic
• Features：Low Insertion Force (LIF)
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FA1004SA1-R8000
