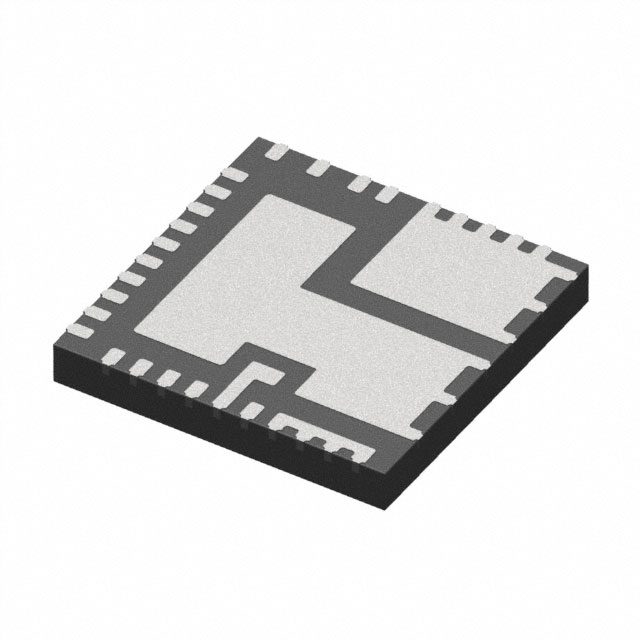

FAN65004C

Voltage Regulators - DC DC Switching Regulators Overview

The FAN65004C is a synchronous PWM buck regulator from onsemi, designed for high-performance voltage mode control. It operates with an input voltage range of 4.5 V to 65 V and supports a maximum output current of 6 A. The device features adjustable switching frequencies ranging from 100 kHz to 1 MHz and includes input voltage feed-forward for improved transient response. It integrates a wide array of protection circuits, including over-current protection (OCP), thermal shutdown (TSD), over-voltage protection (OVP), under-voltage protection (UVP), and short-circuit protection (SCP).

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Fixed frequency voltage mode PWM control with input voltage feed-forward.
• Adjustable switching frequency from 100 kHz to 1 MHz.
• Selectable CCM PWM mode or PFM mode for light loads.
• Wide array of protection circuits including OCP, TSD, OVP, UVP, and SCP.

Voltage Regulators - DC DC Switching Regulators Applications

• Power over coax sensor modules.
• Industrial power supplies.
• Telecommunications equipment.

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix (e.g., 'C') against official datasheets to confirm pinout and electrical characteristics, as variations may exist within the FAN65004 family. Ensure compatibility with the Strata Development Environment if utilizing evaluation boards like the STR-FAN65004C-GEVB for performance testing. Confirm package availability and lead times through authorized distributors, as supply chain conditions fluctuate.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select the FAN65004C when an input voltage up to 65 V is required, distinguishing it from lower-voltage variants in the same series. Choose this component for applications needing precise voltage mode control with feed-forward capabilities. Consider the adjustable frequency range for optimizing EMI and efficiency trade-offs. Verify that the 6 A current rating meets the load requirements and that the integrated protection features align with system safety standards.

Voltage Regulators - DC DC Switching Regulators Part Context

The FAN65004C belongs to the FAN6500XX series of synchronous buck regulators from onsemi. This family is optimized for high-efficiency power conversion in industrial and communication systems. The device is supported by the Strata Development Environment, which provides access to datasheets, BOMs, schematics, and user interfaces for performance testing via evaluation boards.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Public confirmed substitute part numbers include FAN65004B, FAN65005A, and FAN65008B within the same synchronous buck regulator family. Verify functional equivalence and pin compatibility before substitution.
