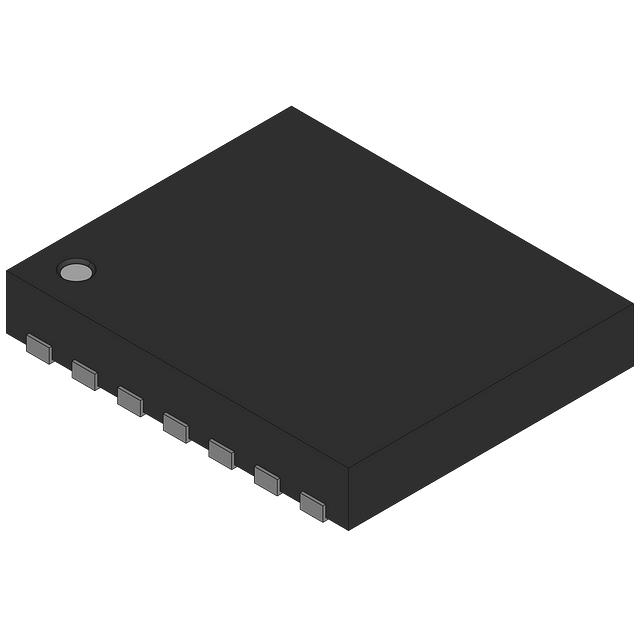

FAN8460MPX

Overview

The FAN8460MPX is a high-efficiency, synchronous buck controller designed for powering central processing units and graphics processors in notebook computers. It integrates two PWM channels with an adaptive phase control scheme to optimize efficiency across varying load conditions. The device supports multiple output voltage configurations and includes comprehensive protection features such as over-current, over-voltage, and thermal shutdown. Operating from a single supply voltage, it utilizes a fixed switching frequency architecture to minimize external component count while maintaining stable regulation under dynamic transient loads.

Feature Summary

• Integrates dual synchronous PWM controllers with adaptive phase shedding for enhanced light-load efficiency
• Supports flexible output voltage programming suitable for CPU and GPU power delivery applications
• Includes built-in protection mechanisms against over-current, over-voltage, and thermal events

Applications

• Central Processing Unit (CPU) core voltage regulation in mobile platforms
• Graphics Processor Unit (GPU) power supply modules
• High-performance portable computing systems requiring efficient multi-phase power management

Procurement Notes

Verify the specific suffix 'MPX' corresponds to the required tape-and-reel packaging configuration. Confirm that the manufacturer designation aligns with current corporate ownership structures following industry acquisitions. Ensure compatibility with existing board layouts by checking pin assignments against updated datasheets. Validate RoHS compliance status if environmental regulations apply to the target deployment region.

Selection Notes

Select this component when designing power stages for mobile processors requiring high efficiency at both full and partial loads. Consider the adaptive phase control feature for optimizing battery life in portable devices. Evaluate the integration level to reduce bill of materials compared to discrete driver solutions. Assess thermal performance requirements based on the expected current density and ambient operating conditions within the chassis.

Part Context

This controller belongs to a family of synchronous buck regulators aimed at mobile computing markets. It addresses the need for compact, high-density power solutions in thin-and-light laptops. The design philosophy emphasizes reducing external passive components while maintaining robust transient response capabilities essential for modern processor power rails.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
