FB100505T-601Y-S

Chip Ferrite Bead Overview

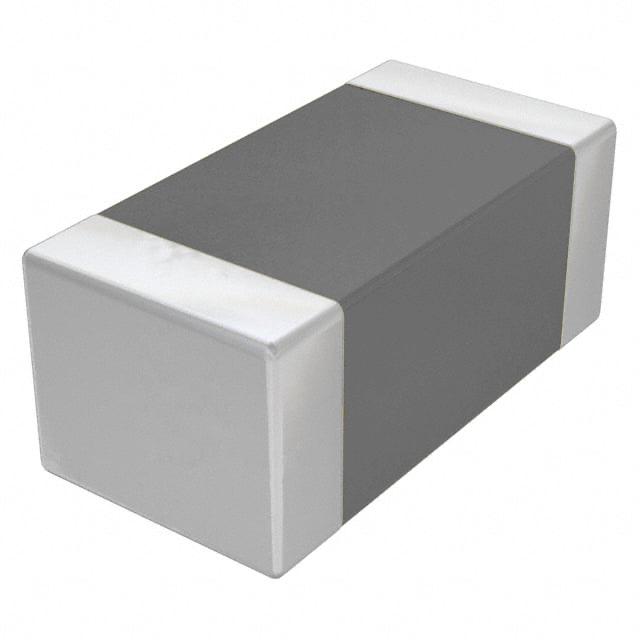

The FB100505T-601Y-S is a surface-mount ferrite chip bead manufactured by Cal-Chip Electronics, Inc. It features a 0402 (1005 Metric) package with dimensions of 1.0 mm length and 0.5 mm height. The component provides an impedance of 600 Ohms at 100 MHz and supports a maximum current rating of 300 mA. It has a low DC resistance of 600 mOhm and operates within a temperature range of -55°C to 125°C.

Chip Ferrite Bead Feature Summary

• Provides EMI/RFI attenuation through high impedance characteristics in the signal line
• Designed for direct surface mounting on PCBs without requiring additional wiring
• Constructed using multilayered ferrite technology for robust electrode strength

Chip Ferrite Bead Applications

• Signal line filtering in compact electronic devices
• EMI suppression in surface mount assembly processes
• Noise reduction in portable equipment with limited board space

Chip Ferrite Bead Procurement Notes

Verify the specific impedance value and current rating against the official datasheet before integration. Confirm that the 0402 package dimensions align with your PCB footprint requirements. Ensure the operating temperature range meets your environmental specifications. Check for RoHS compliance status if required by your manufacturing standards.

Chip Ferrite Bead Selection Notes

Select this component when space constraints necessitate a 0402 footprint. Choose based on the required 600 Ohm impedance at 100 MHz for effective noise filtering. Consider the 300 mA current handling capability for power integrity. Evaluate the low DC resistance to minimize voltage drop in the circuit path.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the FB series from Cal-Chip Electronics, which utilizes multilayered technology for EMI suppression. The series is designed for surface mounting applications, offering high impedance and solder heat resistance. It serves as a compact alternative to conventional beads that require wiring.

Chip Ferrite Bead Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
