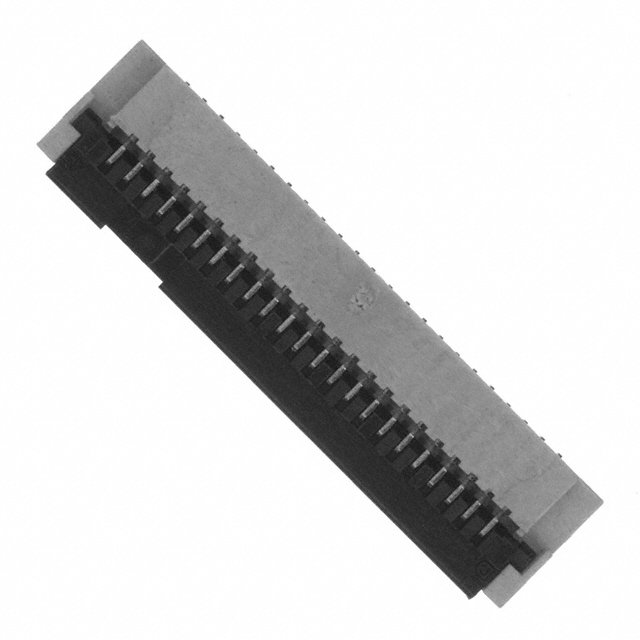

FFC, FPC (Flat Flexible) Connector Assemblies FB3S045C11 product image

FB3S045C11

Description：CONN FPC BOTTOM 45POS 0.3MM R/A
Series：FB3
Mfr：JAE Electronics
Package：Bulk

SKU:4d2ce1c77cca Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: JAE Electronics

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FB3S045C11 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists JAE Electronics. Its product description is CONN FPC BOTTOM 45POS 0.3MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FB3S045C11

Description：CONN FPC BOTTOM 45POS 0.3MM R/A
Series：FB3
Mfr：JAE Electronics
Package：Bulk
Flat Flex Type：FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：45
Pitch：0.012" (0.30mm)
Termination：Solder
FFC, FCB Thickness：0.20mm
Height Above Board：0.075" (1.90mm)
Locking Feature：Flip Lock
Cable End Type：Tapered
Contact Material：Copper Alloy
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material：Polyamide (PA), Nylon, Glass Filled
Features：Low Insertion Force (LIF)
Voltage Rating：50V
Operating Temperature：-40°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FB3S045C11
