FBA03VA450NA-00

Description：FERRITE BEAD 35 OHM AXIAL 1LN
Series：FB
Mfr：Taiyo Yuden
Package：Bulk

SKU:973ef6310bea Category: Ferrite Beads and Chips Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FBA03VA450NA-00 is listed in the Chip Ferrite Bead range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is FERRITE BEAD 35 OHM AXIAL 1LN. Review the specifications below when checking this part for your BOM.

Chip Ferrite Bead specifications for FBA03VA450NA-00

Description：FERRITE BEAD 35 OHM AXIAL 1LN
Series：FB
Mfr：Taiyo Yuden
Package：Bulk
Filter Type：-
Number of Lines：1
Impedance @ Frequency：35 Ohms @ 100 MHz
Current Rating (Max)：7A
DC Resistance (DCR) (Max)：10mOhm
Ratings：-
Operating Temperature：-25°C ~ 85°C
Package / Case：Axial
Mounting Type：Through Hole
Height (Max)：-
Size / Dimension：0.098" Dia x 0.177" L (2.50mm x 4.50mm)
Features：-

Chip Ferrite Bead datasheet and documents for FBA03VA450NA-00

FBA03VA450NA-00

Chip Ferrite Bead Overview

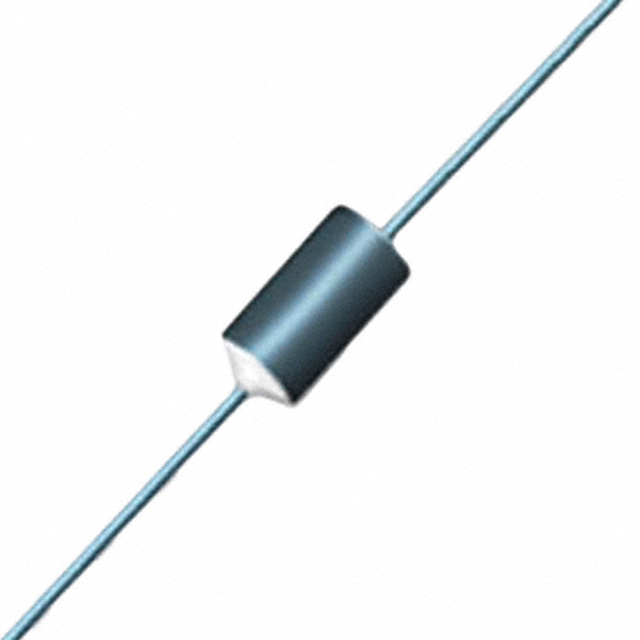

The FBA03VA450NA-00 is an axial leaded ferrite bead from the Taiyo Yuden FB series. It provides electromagnetic interference suppression with a nominal impedance of 35 ohms at 100 MHz. The component supports a maximum DC current of 7 A and has a maximum DC resistance of 1 mOhm. It operates within a temperature range of -25°C to +85°C. Physical dimensions are 2.5 mm in diameter and 4.5 mm in length.

Chip Ferrite Bead Feature Summary

Axial straight lead configuration for through-hole mounting
High current handling capability up to 7 A
Low DC resistance for minimal signal loss

Chip Ferrite Bead Applications

Electromagnetic interference filtering in power lines
Signal integrity protection in high-current circuits
Noise suppression in industrial electronic equipment

Chip Ferrite Bead Procurement Notes

Verify product status as obsolete or discontinued before procurement planning. Confirm availability through authorized distributors or secondary market suppliers. Ensure compatibility with existing PCB footprints and soldering processes. Review datasheets for any specific handling or storage requirements associated with legacy components.

Chip Ferrite Bead Selection Notes

Select this component for applications requiring high current capacity and low impedance insertion loss. Verify that the 35 ohm impedance at 100 MHz meets the target noise suppression requirements. Ensure the axial package fits the mechanical constraints of the design. Consider thermal management within the specified operating temperature range.

Chip Ferrite Bead Part Context

This part belongs to the Taiyo Yuden FB series of ferrite beads, designed for general-purpose EMI suppression. The series offers various impedance values and current ratings to suit different circuit needs. Axial leads facilitate easy integration into through-hole designs common in industrial and consumer electronics.
