FBMH3225HM102NTV

Chip Ferrite Bead Overview

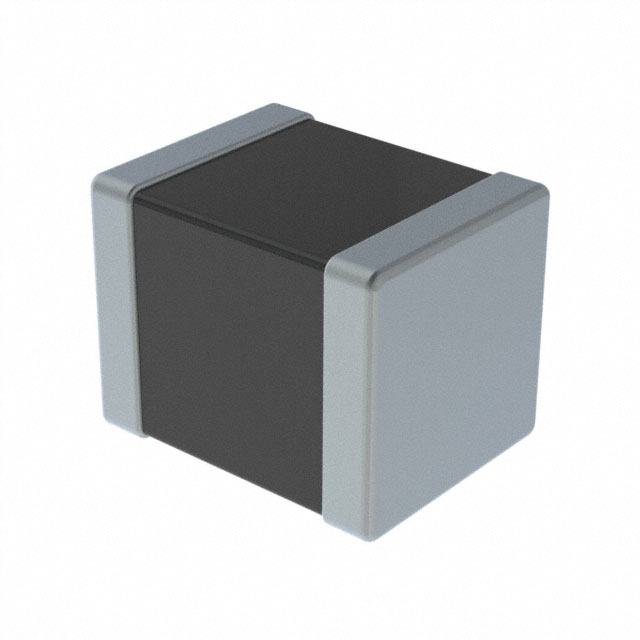

The FBMH3225HM102NTV is a single-line ferrite bead from the Taiyo Yuden FB series, designed for power line filtering applications. It features a 1210 (3225 metric) surface-mount package with dimensions of 3.20mm x 2.50mm and a maximum height of 2.80mm. The component provides an impedance of 1 kOhms at 100 MHz and supports a maximum DC current of 2A. Its maximum DC resistance is 100 mOhms. It operates within a temperature range of -40°C to +125°C and holds AEC-Q200 qualification.

Chip Ferrite Bead Feature Summary

• Provides high-impedance noise suppression on power lines at 100 MHz
• Supports high continuous DC current up to 2A with low insertion loss
• Qualified for automotive environments under AEC-Q200 standards
• Utilizes shielded construction to minimize electromagnetic interference

Chip Ferrite Bead Applications

• Automotive electronic systems requiring EMI suppression
• Industrial equipment power distribution networks
• Medical device power supply filtering
• General-purpose power line noise reduction circuits

Chip Ferrite Bead Procurement Notes

Verify that the specific suffix 'V' matches the required reel packaging configuration for automated assembly processes. Confirm that the AEC-Q200 qualification status remains active by checking the latest manufacturer product change notices. Ensure the selected variant aligns with the intended thermal management requirements given the 125°C maximum operating limit. Cross-reference the datasheet impedance curve to validate performance at the target frequency.

Chip Ferrite Bead Selection Notes

Select this component when a 1210 footprint is available and a 1 kOhm impedance at 100 MHz is required for power rail filtering. The 2A current rating must exceed the maximum expected load current to prevent saturation. Consider the 100 mOhm DCR for voltage drop calculations in low-voltage applications. This part is suitable for designs needing automotive-grade reliability without requiring larger package sizes.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the FB series of multilayer ceramic components manufactured by Taiyo Yuden. The series is characterized by high-reliability materials and advanced manufacturing processes certified under TS-16949. These components are engineered to withstand harsh environmental conditions while providing consistent electromagnetic interference suppression across industrial and automotive sectors.

Chip Ferrite Bead Replacement Considerations

Public documentation suggests LCMGA322525T202NG as an alternate option. Verify electrical compatibility before substitution.
