FBMJ2125HS420-T

Chip Ferrite Bead Overview

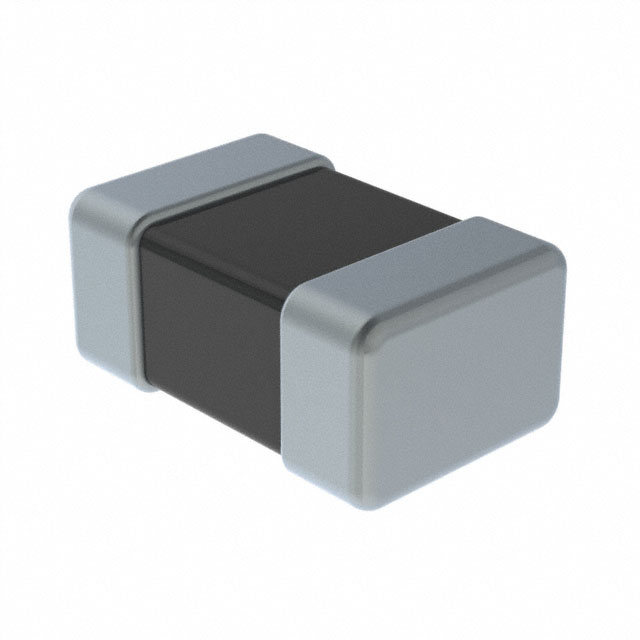

The FBMJ2125HS420-T is a chip bead inductor from the FB series M type, manufactured by Taiyo Yuden. Designed for power line applications, this component features an impedance of 42 Ohms at 100 MHz and supports a maximum DC current of 4 Amperes. It utilizes a low resistance design with an RDC of 8 milliohms. The device is housed in a compact 0805 (2012 Metric) package, suitable for surface mount technology.

Chip Ferrite Bead Feature Summary

• Engineered specifically for power line noise suppression
• Features low DC resistance to minimize power loss
• High current handling capability for robust performance

Chip Ferrite Bead Applications

• Power supply filtering circuits
• Noise suppression on high-current data lines
• Embedded system power rail conditioning

Chip Ferrite Bead Procurement Notes

Verify the specific suffix and manufacturing date code upon order confirmation. Ensure compatibility with peak reflow temperature profiles defined in the official datasheet. Confirm RoHS compliance status matches project requirements. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Validate storage conditions to maintain material integrity before assembly.

Chip Ferrite Bead Selection Notes

Select this component when high current capacity is required alongside effective high-frequency noise attenuation. The 0805 footprint offers a balance between thermal dissipation and board space efficiency. Consider the 4A rating against peak load currents to prevent saturation. Evaluate the 42 Ohm impedance value relative to the target noise frequency spectrum for optimal filtering performance.

Chip Ferrite Bead Part Context

This ferrite bead belongs to Taiyo Yuden's FB series M type, which focuses on multilayer chip beads optimized for power lines. The series emphasizes low resistance characteristics to maintain voltage stability under heavy loads while providing necessary electromagnetic interference suppression for sensitive electronic systems.

Chip Ferrite Bead Replacement Considerations

Taiyo Yuden suggests the LSMCC201208T420RG as a suggested alternate part. Verify electrical parameters and physical dimensions before substitution. Check for any differences in mounting specifications or thermal characteristics that may impact the final assembly.
