FBMJ3216HM600-TV

Chip Ferrite Bead Overview

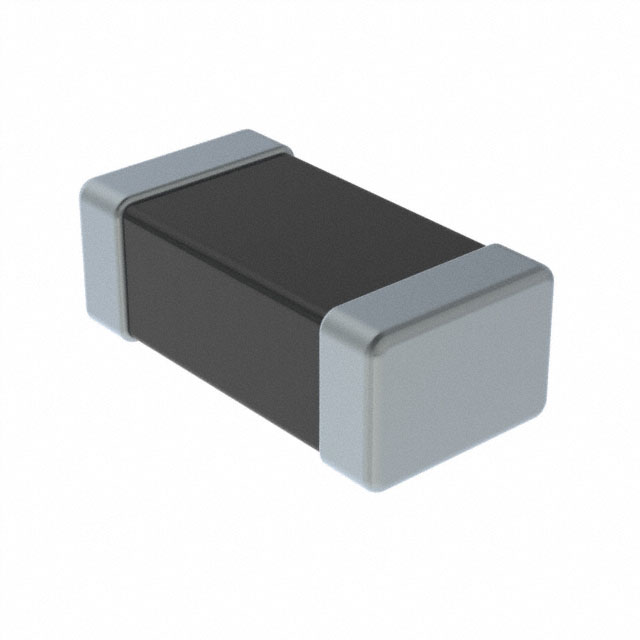

The FBMJ3216HM600-TV is a shielded ferrite chip bead from the FB series, manufactured by Taiyo Yuden. It features a 1206 (3216 metric) surface-mount package with dimensions of 3.2 mm length, 1.6 mm width, and 1.1 mm height. The component provides an impedance of 60 Ohms at a test frequency of 100 MHz, with a tolerance of ±25%. It supports a maximum DC current of 4 A and has a maximum DC resistance of 10 mOhms. Operating within a temperature range of -40°C to +125°C, it is qualified under AEC-Q200 standards for automotive reliability.

Chip Ferrite Bead Feature Summary

• Shielded construction minimizes electromagnetic interference radiation
• AEC-Q200 qualification ensures suitability for automotive environments
• High current handling capability up to 4 Amperes
• Low DC resistance reduces power loss in signal paths

Chip Ferrite Bead Applications

• Automotive body and chassis circuits
• Vehicle infotainment systems
• Industrial equipment EMI suppression

Chip Ferrite Bead Procurement Notes

Verify the specific suffix against official datasheets to confirm packaging configuration, as variations such as TV or T may indicate different reel or cut-tape specifications. Ensure the part number matches the required impedance and current ratings for the target circuit design before procurement.

Chip Ferrite Bead Selection Notes

Select this component when a 1206 footprint is required for high-current applications needing 60 Ohms of impedance at 100 MHz. The AEC-Q200 qualification makes it appropriate for automotive designs, while the shielded type offers superior noise suppression compared to unshielded alternatives in dense PCB layouts.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the FB series of chip beads designed for EMI suppression. It is categorized under passive components, specifically ferrites, and is manufactured using Taiyo Yuden's proprietary materials to ensure consistent performance across industrial and automotive temperature ranges.

Chip Ferrite Bead Replacement Considerations

Official alternate part numbers include LSMCA321611T600RG and LLMCA321611T600RG. Verify electrical compatibility and physical dimensions before substitution.
