FBR07VA850SB-00

Chip Ferrite Bead Overview

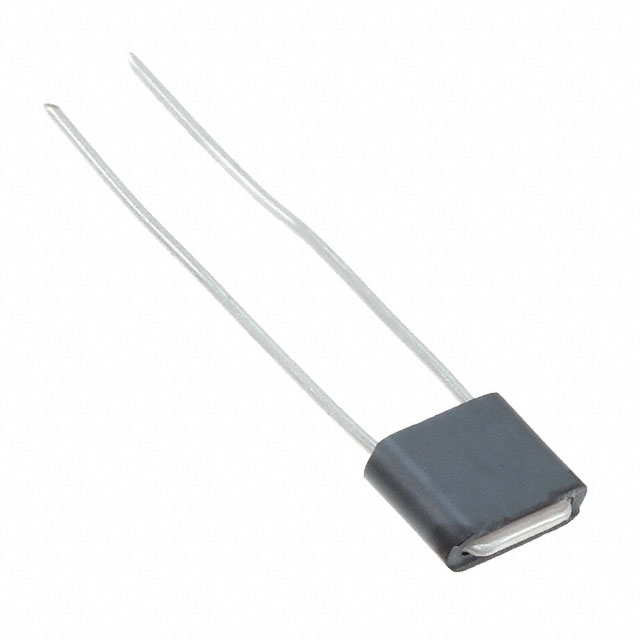

The FBR07VA850SB-00 is a leaded ferrite bead inductor from the Taiyo Yuden FB series. It features a radial straight configuration with dimensions of 7.5mm length and 2.5mm diameter. The component provides a minimum impedance of 85 ohms at a measuring frequency of 100 MHz. It supports a maximum rated current of 7A and has a maximum DC resistance of 10 milliohms. The operating temperature range spans from -25°C to 85°C. This through-hole device is designed for electromagnetic interference suppression in electronic circuits.

Chip Ferrite Bead Feature Summary

• Radial straight leaded construction for through-hole mounting
• High current handling capability up to 7 amperes
• Low DC resistance for minimal signal loss
• Effective high-frequency noise attenuation

Chip Ferrite Bead Applications

• Electromagnetic interference (EMI) filtering in power lines
• Noise suppression in high-current DC circuits
• Signal integrity protection in industrial electronics

Chip Ferrite Bead Procurement Notes

Verify component status as this part number is listed as discontinued or obsolete by multiple distributors. Confirm availability of alternative stock or qualified replacement parts before finalizing procurement plans. Ensure that any sourced units match the original specifications regarding impedance, current rating, and physical dimensions to maintain circuit compatibility.

Chip Ferrite Bead Selection Notes

Select this component when a radial ferrite bead with 85 ohms impedance at 100 MHz is required. Ensure the application current does not exceed 7A to prevent thermal issues. Verify that the through-hole package fits the PCB layout constraints. Consider the operating temperature range of -25°C to 85°C against environmental conditions.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the Taiyo Yuden FB series of passive components. These components are engineered for EMI suppression in various electronic assemblies. The specific model utilizes a radial leaded format, distinguishing it from surface-mount alternatives within the same product family. It serves as a critical element for maintaining signal quality in noisy environments.

Chip Ferrite Bead Replacement Considerations

Public confirmed substitute part numbers include FBR07HA850SB-00, FBR07VA121NB-00, and FBR07VA121SB-00. Verify electrical parameters and mechanical fit before substitution.
