FC-LX1D2

Power Line Filter Modules Overview

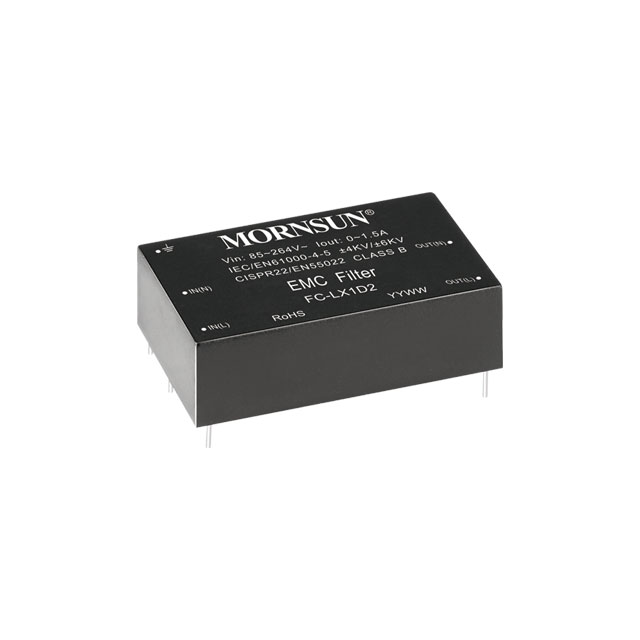

The FC-LX1D2 is an EMC filter module manufactured by Mornsun Science & Technology Ltd. Designed for AC power input ranges of 85VAC to 305VAC, this component provides primary protection against power surges. It features a compact DIP package with dimensions of approximately 46mm x 19mm x 17mm and operates within a temperature range of -40°C to +85°C. The device is RoHS compliant and classified under ECCN EAR99.

Power Line Filter Modules Feature Summary

• Designed to suppress AC power surges for primary circuit protection
• Compact size optimized for cost-effective integration
• Low temperature rise characteristics during operation

Power Line Filter Modules Applications

• AC power input filtering in electronic equipment
• Surge suppression for primary protection stages
• Industrial and commercial ITE applications

Power Line Filter Modules Procurement Notes

Verify the manufacturer designation as MORNSUN Science & Technology Ltd. when sourcing. Confirm compliance with RoHS3 standards and check for specific surge rating documentation if required for safety-critical designs. Ensure the DIP package footprint matches the target PCB layout constraints before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this component when primary surge suppression is required for AC inputs between 85VAC and 305VAC. Consider its compact DIP form factor for space-constrained designs. Evaluate thermal performance requirements against the specified operating temperature range of -40°C to +85°C to ensure reliable operation in the intended environment.

Power Line Filter Modules Part Context

This part belongs to the FC series of EMC filters from Mornsun. These modules are distinct from DC-DC converters or AC-DC power supplies, serving specifically as passive/active filtering components to mitigate electromagnetic interference and protect downstream circuits from voltage transients on the AC mains line.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Designers should consult official Mornsun documentation for equivalent series or cross-reference compatible EMC filter modules with matching surge ratings and package dimensions.
