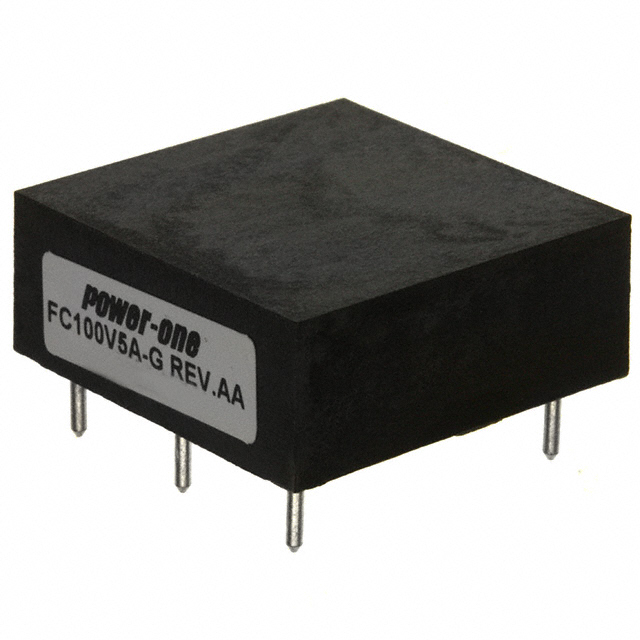

FC100V5A

Description：LINE FILTER 100VDC 5A TH
Series：FC
Mfr：Bel Power Solutions
Package：-

SKU:5d0624bdc61f Category: Power Line Filter Modules Brand: Bel Power Solutions

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FC100V5A is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists Bel Power Solutions. Its product description is LINE FILTER 100VDC 5A TH. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for FC100V5A

Description：LINE FILTER 100VDC 5A TH
Series：FC
Mfr：Bel Power Solutions
Package：-
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：100V
Voltage - Rated AC：-
Current：5:00 AM
Frequency - Operating：-
Applications：General Purpose
Approval Agency：-
Operating Temperature：-40°C ~ 100°C
Mounting Type：Through Hole
Termination Style：PC Pins
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for FC100V5A

FC100V5A

Power Line Filter Modules Overview

The FC100V5A is a single-phase EMC/EMI line filter manufactured by Bel Power Solutions. It features a single-stage configuration designed for AC applications with a rated DC voltage of 100V and a current capacity of 5A. The component utilizes through-hole mounting with PC pin termination styles. It operates within a temperature range of -40°C to 100°C and is classified as a general-purpose passive component.

Power Line Filter Modules Feature Summary

Single-phase EMC/EMI line filtering capability
Single-stage configuration for noise suppression
Through-hole installation with PC pin termination

Power Line Filter Modules Applications

General purpose electronic equipment
AC power line noise reduction

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix, such as -G, against official manufacturer documentation to confirm compliance status and exact specifications. Confirm availability status as components may be subject to discontinuation or lifecycle changes. Ensure the selected variant matches the required voltage and current ratings for the intended circuit design before procurement.

Power Line Filter Modules Selection Notes

Select this component for applications requiring single-stage EMI suppression in AC circuits. Ensure the operating environment stays within the specified -40°C to 100°C temperature range. Verify that the 5A current rating and 100V DC voltage rating align with system requirements. Confirm compatibility with through-hole PCB assembly processes using PC pins.

Power Line Filter Modules Part Context

This component belongs to the FC series of line filters from Bel Power Solutions. The series offers various current ratings for single-phase applications. The FC100V5A specifically addresses lower current needs compared to higher-rated variants like the FC100V10A. It serves as a passive filtering solution for electromagnetic interference in power lines.
