FC1BACBEI20.0-T3

Crystals Overview

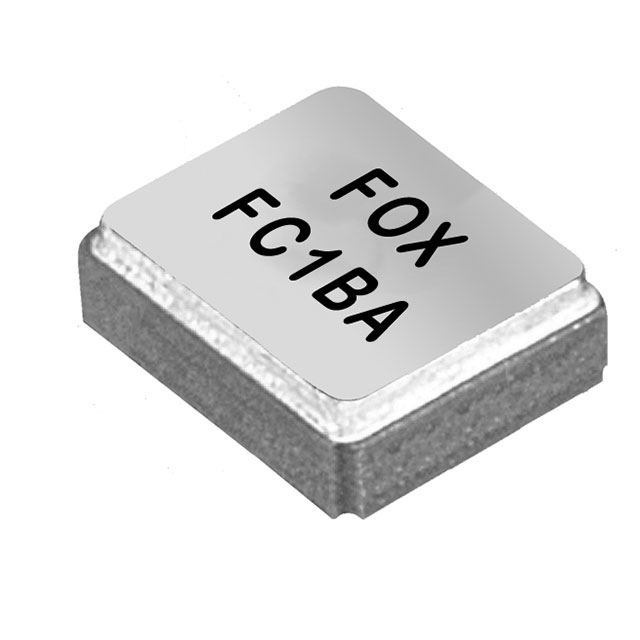

The FC1BACBEI20.0-T3 is a parallel fundamental quartz crystal by Fox Electronics, operating at a nominal frequency of 20 MHz. It features a ±30 ppm frequency tolerance and ±50 ppm stability at 25°C. The component utilizes a 10 pF load capacitance and has an equivalent series resistance (ESR) of 120 Ω. Designed for surface mount applications, it measures 2.0 mm x 1.6 mm with a maximum height of 0.55 mm. It operates within a temperature range of -40°C to +125°C, supports a drive level of 100 µW, and exhibits an aging rate of 5 ppm/year.

Crystals Feature Summary

• AEC-Q200 qualified automotive grade reliability
• Compact 2.0x1.6mm SMD footprint
• Low power consumption design

Crystals Applications

• Automotive domain controllers
• T-Box communication modules
• Smart cockpit systems

Crystals Procurement Notes

Verify the specific suffix 'EI' corresponds to the required 10pF load capacitance and ±50ppm stability configuration. Confirm the 'T3' packaging designation matches the intended reel quantity requirements. Ensure the manufacturer source is authorized to guarantee AEC-Q200 certification validity and RoHS compliance status.

Crystals Selection Notes

Select this part when a 20MHz clock signal is required for automotive electronics with strict space constraints. It is suitable for designs needing ±30ppm initial accuracy and operation up to 125°C. Consider alternative load capacitances if the circuit design differs from standard 10pF configurations.

Crystals Part Context

This component belongs to the FC1BA series, formerly known as FXA2016B. It is designed for high-reliability automotive environments under IATF-16949 quality management systems. The series offers various frequency and tolerance options within a standardized small outline package.

Crystals Replacement Considerations

Direct substitutes include other Fox Electronics parts within the FC1BA family sharing identical mechanical dimensions and electrical parameters. Verify that any replacement maintains the same ESR value and load capacitance to ensure oscillator circuit compatibility.
