FC2BACBEI16.0-T3

Crystals Overview

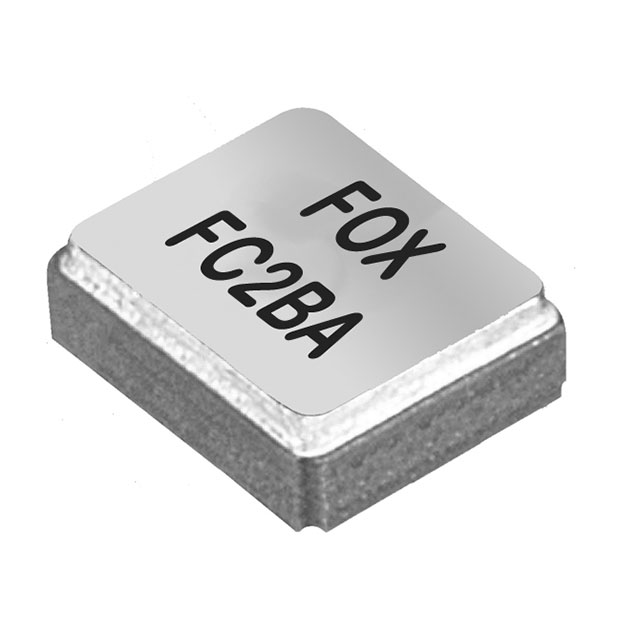

The FC2BACBEI16.0-T3 is a surface-mount crystal oscillator manufactured by Fox Electronics, operating at a nominal frequency of 16 MHz. It features a tolerance of ±30 ppm and a load capacitance of 10 pF. The component is housed in a compact 4-SMD, no-lead package with dimensions of 2.50 mm x 2.00 mm. It supports an extended operating temperature range from -40°C to +85°C and exhibits an equivalent series resistance (ESR) of 200 Ohms.

Crystals Feature Summary

• Compact 2.50 mm x 2.00 mm surface-mount footprint for space-constrained designs
• High stability frequency performance suitable for precision timing applications
• Robust construction supporting wide industrial temperature ranges

Crystals Applications

• Microcontroller clock sources
• Communication module timing circuits
• Industrial control system oscillators

Crystals Procurement Notes

Verify the specific suffix 'T3' indicates reel packaging when sourcing. Confirm RoHS compliance status through official documentation prior to integration. Ensure the 10 pF load capacitance matches the target circuit design requirements. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components.

Crystals Selection Notes

Select this component for applications requiring a 16 MHz reference signal in small form factors. Consider the 200 Ohm ESR value for oscillator circuit compatibility. Evaluate the ±30 ppm tolerance against system timing accuracy needs. Compare physical dimensions against available PCB real estate constraints.

Crystals Part Context

This model belongs to the Fox Electronics crystal oscillator portfolio, designed for reliable frequency generation. It utilizes quartz resonator technology packaged for automated surface-mount assembly. The product line emphasizes miniaturization while maintaining standard electrical characteristics for general-purpose timing.

Crystals Replacement Considerations

Direct substitutes include FC2BSECEM16.0-T3 and FC2BACBEI16.0-T3 variants with matching 16 MHz frequency and 2.5x2.0 mm package. Verify pinout compatibility and load capacitance specifications before substitution.
