FC2BAEBEI40.0-T1

Crystals Overview

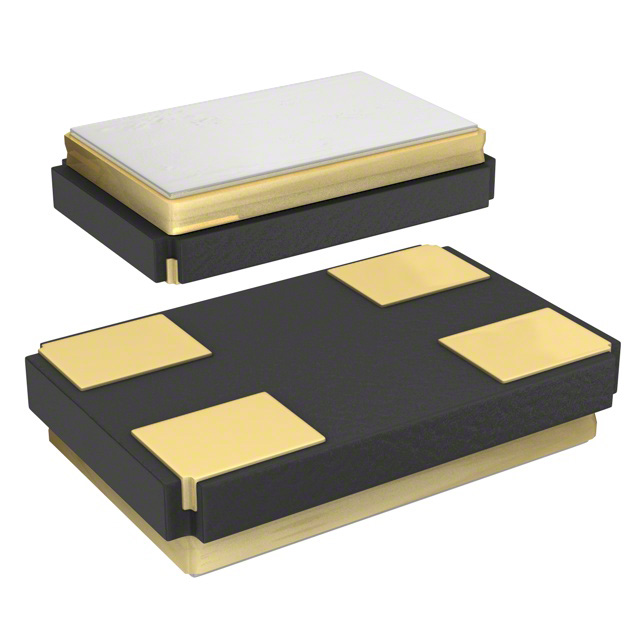

The FC2BAEBEI40.0-T1 is a 40 MHz fundamental mode crystal oscillator from Fox Electronics, designed for surface-mount applications. It features an HCMOS output and operates within a temperature range of -40°C to +85°C. The component has a frequency stability of ±20 ppm and a load capacitance of 10 pF with an equivalent series resistance of 50 Ohms. It utilizes a 4-SMD, no-lead package measuring 5 mm in length, 3.2 mm in width, and 1.4 mm in height.

Crystals Feature Summary

• Provides stable HCMOS digital output signals for clock generation.
• Engineered for high reliability in automotive-grade environments.
• Compact surface-mount design facilitates automated assembly.

Crystals Applications

• Automotive electronic control units requiring precise timing.
• Microcontroller clock sources in industrial systems.
• Communication interface circuits demanding low jitter.

Crystals Procurement Notes

Verify the specific operating temperature range and frequency tolerance against system requirements before procurement. Confirm that the 4-SMD no-lead package dimensions align with the PCB footprint. Ensure compatibility with the target circuit's load capacitance specifications. Check for RoHS compliance status if required by regulatory standards. Validate the supplier's authenticity to avoid counterfeit components.

Crystals Selection Notes

Select this model when a 40 MHz clock signal with ±20 ppm stability is required. Consider the HCMOS output level for direct logic interfacing. Evaluate the -40°C to +85°C range against environmental conditions. Compare package size constraints with available board space. Assess the 50 Ohm ESR impact on oscillator circuit design.

Crystals Part Context

This component belongs to Fox Electronics' crystal oscillator portfolio, focusing on precision timing solutions. The series supports various frequencies and packages for diverse electronic applications. It complements other oscillators and crystals offered by the manufacturer for complete timing system designs.

Crystals Replacement Considerations

Cross-reference with FC1BAEBEI40.0-T1 for similar performance characteristics. Verify pinout and electrical parameters match before substitution. Ensure the replacement maintains the required frequency stability and output type.

Crystals FAQ

What is the output waveform type?

The FC2BAEBEI40.0-T1 provides an HCMOS output waveform.

Is this component suitable for automotive use?

Yes, it is designed for automotive-grade applications and meets relevant reliability standards.
