FC3BACAGI16.0-T3

Crystals Overview

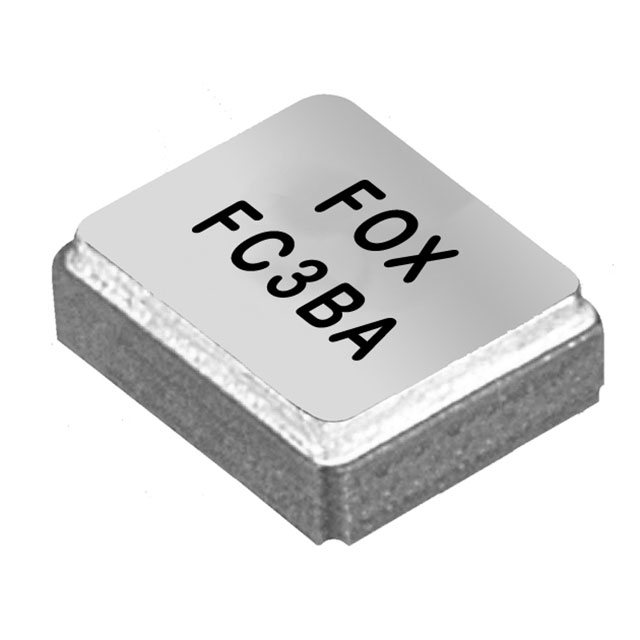

The FC3BACAGI16.0-T3 is a passive crystal oscillator manufactured by Fox Electronics, operating at a fundamental frequency of 16 MHz. It features a load capacitance of 12 pF and an equivalent series resistance (ESR) of 100 Ohms. The component offers a frequency tolerance of ±30 ppm and a stability of ±100 ppm. Designed for automotive applications, it meets AEC-Q200 standards and operates within a temperature range of -40°C to +125°C. The device utilizes a 4-SMD, no-lead package with dimensions of 5.00mm x 3.20mm and a maximum height of 1.00mm.

Crystals Feature Summary

• AEC-Q200 qualified for automotive reliability
• Wide operating temperature range from -40°C to +125°C
• Surface-mount 4-SMD no-lead package design

Crystals Applications

• Automotive electronic systems
• High-reliability timing circuits
• Temperature-stable clock generation

Crystals Procurement Notes

Verify the specific ordering suffix against official Fox Electronics documentation to ensure accurate specifications. Confirm that the requested part matches the required frequency tolerance, load capacitance, and package type. Cross-reference the manufacturer's datasheet for the most current electrical parameters and mechanical drawings before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 16 MHz fundamental mode crystal is required for automotive-grade environments. Ensure the circuit design supports a 12 pF load capacitance and accounts for the 100 Ohm ESR. Verify that the PCB footprint accommodates the 5.00mm x 3.20mm SMD package and that the application demands compliance with AEC-Q200 standards.

Crystals Part Context

This model belongs to the Fox Electronics C5BA series of passive crystals. It is specifically engineered for high-reliability applications where strict frequency stability and wide temperature operation are critical. The part is commonly used in automotive electronics requiring robust timing solutions under harsh environmental conditions.

Crystals Replacement Considerations

FC3BACAGI16.0 is the base part number for this component.
