FC3BAEBGI24.0-T1

Crystals Overview

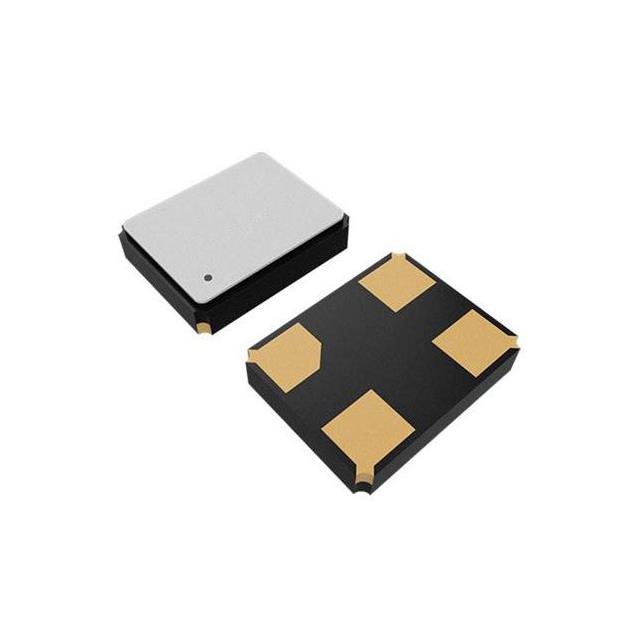

The FC3BAEBGI24.0-T1 is a 24 MHz fundamental mode crystal manufactured by Fox Electronics, designed for surface-mount applications. It features a 4-SMD, no-lead package with dimensions of 3.20mm x 2.50mm and a maximum height of 0.70mm. The component operates within a temperature range of -40°C to 125°C and holds AEC-Q200 automotive qualification. Key electrical specifications include a frequency tolerance of ±20ppm, a load capacitance of 12pF, and an equivalent series resistance (ESR) of 50 Ohms.

Crystals Feature Summary

• Automotive-grade reliability certified under the AEC-Q200 standard for harsh environment durability
• Sealed ceramic construction utilizing seam-welding technology to ensure long-term stability
• RoHS3 compliant manufacturing process supporting environmentally conscious production requirements

Crystals Applications

• Automotive electronic systems requiring high-frequency timing references
• Industrial control equipment operating in wide temperature ranges
• Embedded microcontroller clock generation circuits

Crystals Procurement Notes

Verify that the specific suffix matches the required frequency tolerance and load capacitance for your circuit design. Confirm the package type aligns with your PCB footprint constraints. Ensure the supplier provides traceability documentation to validate the AEC-Q200 certification status before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 24 MHz reference is needed in a compact 3225 form factor. The low ESR value supports efficient oscillator circuit design. Consider the wide operating temperature range if the application involves significant thermal fluctuations or outdoor exposure scenarios.

Crystals Part Context

This part belongs to the FC3BA series of surface-mount crystals from Fox Electronics. The series is characterized by its small physical profile and robust mechanical construction. It serves as a timing element for digital logic circuits where precise frequency stability is critical for system synchronization.

Crystals Replacement Considerations

Direct substitutes must match the 24 MHz frequency, 12pF load capacitance, and 4-SMD package dimensions. Verify that alternative components meet the same AEC-Q200 automotive qualification standards and maintain comparable ESR specifications for circuit compatibility.
