FC3BQBBME24.0-T3

Crystals Overview

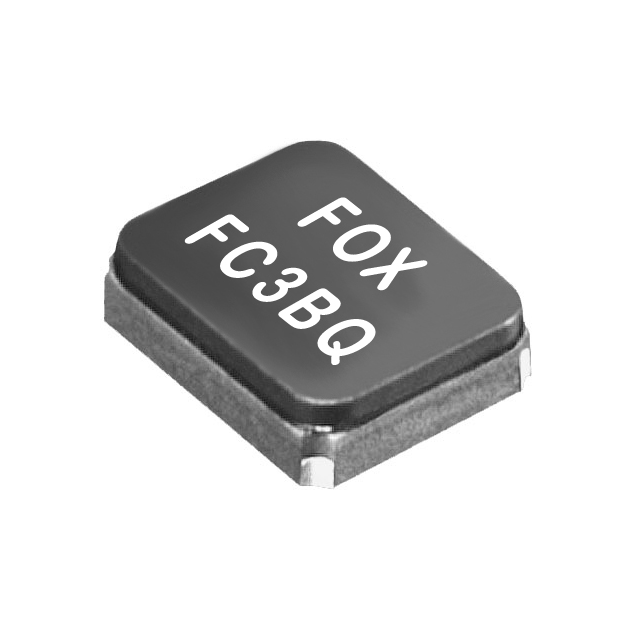

The FC3BQBBME24.0-T3 is a parallel fundamental quartz crystal manufactured by Fox Electronics, operating at a nominal frequency of 24 MHz. It features a frequency stability and tolerance of ±50 ppm and a load capacitance of 20 pF. The component utilizes a 4-SMD, no-lead package with dimensions of 3.20 mm x 2.50 mm and a maximum height of 1.10 mm. It has an equivalent series resistance (ESR) of 80 Ohms and operates within a temperature range of -10°C to +70°C.

Crystals Feature Summary

• Surface-mount design in a compact 4-SMD no-lead package for automated assembly
• Fundamental parallel resonance mode operation for stable clock generation
• RoHS3 compliant construction ensuring environmental safety standards

Crystals Applications

• Microcontroller clock source circuits
• Digital communication interface timing
• General-purpose embedded system oscillators

Crystals Procurement Notes

Verify the specific suffix T3 against project requirements to ensure compatibility with tape-and-reel handling processes. Confirm that the 80 Ohm ESR aligns with the oscillator circuit design specifications. Check RoHS3 compliance status if restricted substance regulations apply to the final product assembly line.

Crystals Selection Notes

Select this component when a 24 MHz fundamental frequency is required for surface-mount applications. Ensure the circuit supports a 20 pF load capacitance to maintain the specified ±50 ppm accuracy. Consider the -10°C to +70°C operating range against environmental conditions. Verify that the 4-SMD footprint matches the PCB land pattern design.

Crystals Part Context

This part belongs to the FC3BQ series of surface-mount crystals from Fox Electronics. It shares the standard 3.2mm x 2.5mm form factor common to this family. The model designation indicates specific electrical parameters including the 24 MHz frequency and 20 pF load capacitance configuration.

Crystals Replacement Considerations

Cross-reference with other Fox Electronics parts sharing the FC3BQ series prefix and identical 3.2x2.5mm package dimensions. Verify matching frequency, load capacitance, and ESR values before substitution.
