FC4SDCBMF11.0592-T1

Crystals Overview

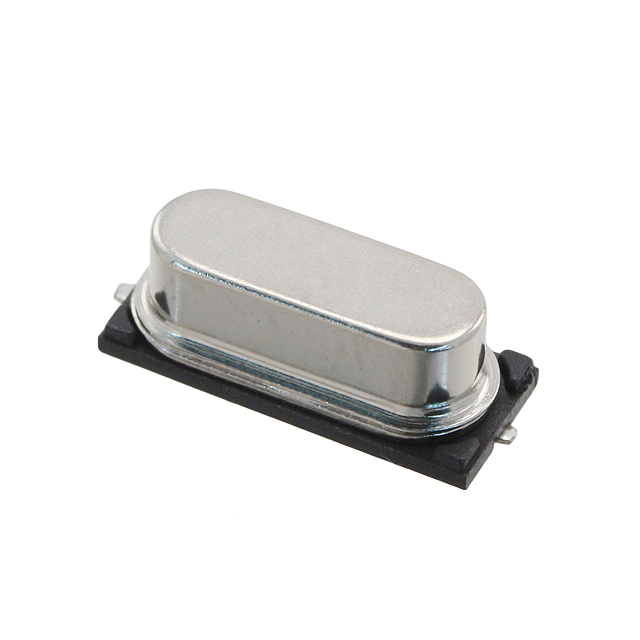

The Fox Electronics FC4SDCBMF11.0592-T1 is a surface-mount MHz crystal operating at 11.0592 MHz. It features a frequency stability of ±50ppm and a tolerance of ±30ppm. The component utilizes a HC-49/US package with dimensions of 11.70mm x 5.00mm x 4.50mm. It has a load capacitance of 20pF and an equivalent series resistance (ESR) of 60 Ohms. Designed for base harmonic operation, it functions within a temperature range of -20°C to 70°C. The device complies with RoHS3 standards and holds MSL level 1 classification.

Crystals Feature Summary

• Surface mount construction in HC-49/US package
• Base harmonic oscillation mode
• Compliant with RoHS3 environmental standards

Crystals Applications

• General purpose clock generation circuits
• Microcontroller system timing references
• Communication interface synchronization

Crystals Procurement Notes

Verify the complete part number including suffixes against official Fox Electronics documentation to ensure correct frequency and packaging specifications. Confirm that the required frequency stability and tolerance meet the target circuit design requirements before procurement. Check for updated datasheets to validate current manufacturing status and compliance certifications.

Crystals Selection Notes

Select this component when a standard HC-49/US footprint is required in a surface-mount configuration. Ensure the PCB layout accommodates the specific 11.70mm by 5.00mm dimensions. Verify that the circuit load capacitance matches the 20pF specification to maintain accurate frequency performance. Consider the operating temperature range limits for the intended application environment.

Crystals Part Context

This component belongs to the FC4SD Series from Fox Electronics, which offers surface-mount crystals designed as alternatives to traditional through-hole HC-49/U packages. The series provides automated assembly compatibility while maintaining familiar form factors. This specific model represents a common frequency used in serial communication applications requiring precise timing references.

Crystals Replacement Considerations

Direct substitutes include other manufacturers' HC-49/US SMD crystals with identical 11.0592MHz frequency, 20pF load capacitance, and similar dimensional constraints. Verify pin compatibility and mounting pad layouts when cross-referencing with alternative brands.
