FC8AQCCMC4.9152-T1

Crystals Overview

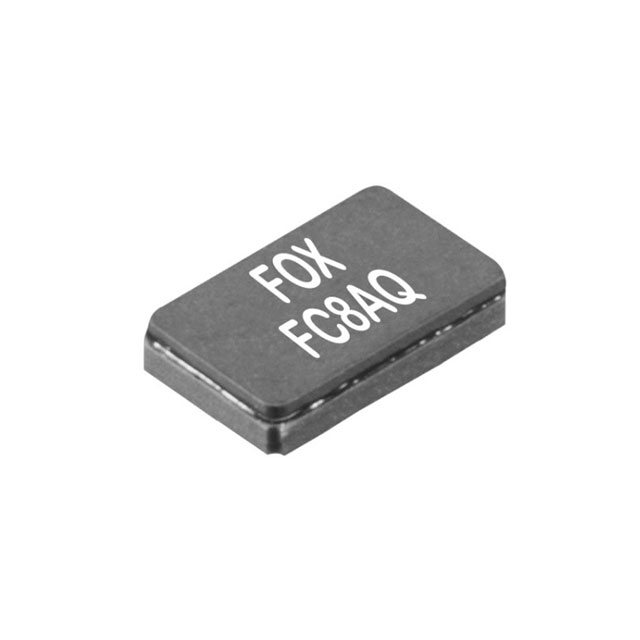

The Fox Electronics FC8AQCCMC4.9152-T1 is a surface-mount quartz crystal resonator operating at a fundamental frequency of 4.9152 MHz. It features a ±30 ppm stability and tolerance specification, with a load capacitance of 20 pF and a maximum equivalent series resistance (ESR) of 150 Ohms. The component utilizes a lead-free 2-SMD package measuring 10 mm x 4.5 mm x 1.7 mm. Designed for industrial applications, it supports temperature ranges down to -40°C to +85°C with ±50 ppm stability options, though this specific part number adheres to the standard ±30 ppm performance profile.

Crystals Feature Summary

• Fundamental mode operation across the 3.2–7 MHz frequency range ensures low equivalent series resistance for reliable startup.
• Lead-free construction compliant with RoHS standards and CE/UL certification requirements for global regulatory adherence.
• Compact 2-SMD footprint designed for space-constrained surface mount assembly processes.

Crystals Applications

• Microcontroller clock sources in industrial control systems
• Low-power embedded timing circuits
• Communication interface synchronization modules

Crystals Procurement Notes

Verify the complete ordering suffix against official Fox Electronics documentation to ensure correct tolerance, load capacitance, and temperature range alignment. Confirm that the specific variant matches the required ±30 ppm stability and 20 pF load parameters for your circuit design before finalizing procurement orders.

Crystals Selection Notes

Select this component when a fundamental mode crystal with moderate stability is required for SMD layouts. Ensure the driving level remains within specified limits to prevent frequency drift. Verify compatibility with the target microcontroller's oscillator input characteristics and parasitic capacitance constraints during the design phase.

Crystals Part Context

This part belongs to the FC8AQ series of surface-mount quartz crystals from Fox Electronics. The series is engineered for industrial-grade reliability, offering various temperature stability grades and frequency options within a standardized small outline package format suitable for automated manufacturing.

Crystals Replacement Considerations

Direct substitutes include other Fox Electronics FC8AQ variants with matching 4.9152 MHz frequency, 20 pF load, and ±30 ppm specifications. Cross-brand replacements must match the 10x4.5mm package dimensions and fundamental mode electrical characteristics.
