FCA 3216KF4-301T02

Chip Ferrite Bead Overview

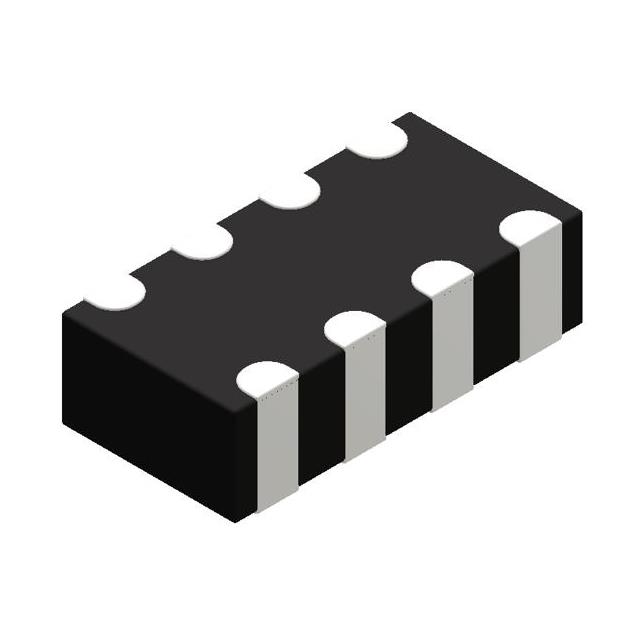

The FCA3216KF4-301T02 is a ferrite chip bead array manufactured by TAI-TECH Advanced Electronics Co., Ltd. It features four independent circuits designed for signal line protection. The component provides an impedance of 300 ohms at a frequency of 100 MHz. It is housed in a compact surface-mount package suitable for high-density PCB layouts.

Chip Ferrite Bead Feature Summary

• Four-channel configuration for simultaneous multi-signal suppression
• High impedance characteristics effective at 100 MHz
• Lead-free construction compliant with environmental standards

Chip Ferrite Bead Applications

• High-speed data interface noise filtering
• Signal integrity enhancement in digital circuits
• EMI suppression on parallel signal lines

Chip Ferrite Bead Procurement Notes

Verify the exact part number spelling and suffix against official manufacturer documentation before ordering. Confirm that the 300-ohm impedance specification matches the target frequency requirements of the application circuit to ensure effective noise attenuation.

Chip Ferrite Bead Selection Notes

Select this component when multiple signal lines require common-mode or differential-mode noise suppression in a confined space. Ensure the operating current remains within the device's thermal limits to maintain stable impedance performance during continuous operation.

Chip Ferrite Bead Part Context

This component belongs to the ferrite bead array category, specifically engineered for suppressing electromagnetic interference in high-frequency applications. It serves as a passive filter element integrated directly into signal paths to attenuate unwanted noise without affecting the primary data transmission.

Chip Ferrite Bead Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify pin compatibility and impedance curves if considering alternative manufacturers.
