FCB-0603-501A

Chip Ferrite Bead Overview

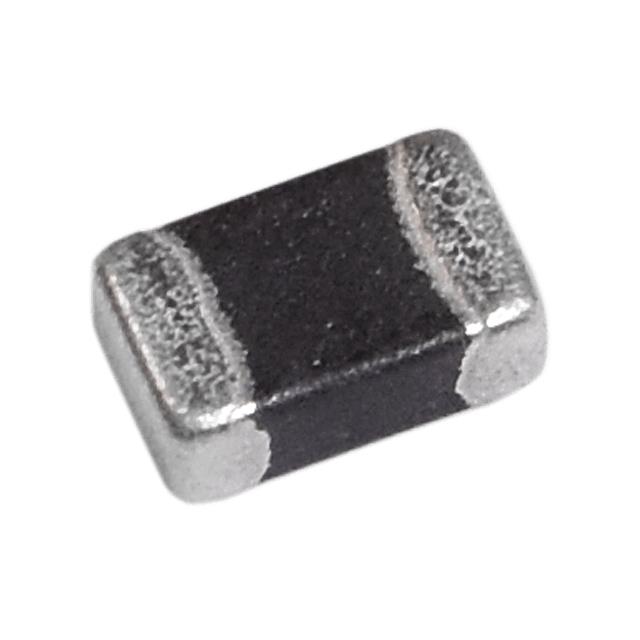

The FCB-0603-501A is a surface-mount ferrite chip bead manufactured by Signal Transformer. It features a 0603 (1608 metric) package with an impedance of 500 Ohms at 100 MHz and a maximum DC resistance of 500 mOhms. The component supports a maximum DC current of 300 mA and operates within a temperature range of -55°C to +125°C.

Chip Ferrite Bead Feature Summary

• Provides high-frequency noise suppression through ferrite material properties
• Designed for compact surface-mount integration in space-constrained circuits
• Offers stable electrical performance across a wide industrial temperature range

Chip Ferrite Bead Applications

• Power line filtering in portable electronic devices
• Signal integrity enhancement in high-speed digital interfaces
• EMI suppression in consumer audio and video equipment

Chip Ferrite Bead Procurement Notes

Verify the manufacturer part number against official Signal Transformer documentation to ensure authenticity. Confirm that the specific impedance tolerance and current ratings align with your circuit design requirements before procurement. Check for RoHS compliance status as indicated in the latest datasheet revisions.

Chip Ferrite Bead Selection Notes

Select this component when a low-profile, high-impedance ferrite bead is required for 0603 footprint constraints. Ensure the 300 mA current rating meets the DC bias conditions of the target application. Validate that the 500 Ohm impedance value effectively attenuates the specific noise frequencies present in the system.

Chip Ferrite Bead Part Context

This component belongs to the FCB series of ferrite beads from Signal Transformer, designed for general-purpose EMI suppression. The series utilizes ceramic-ferrite composite materials to provide effective broadband noise attenuation while maintaining low DC resistance for minimal signal loss in power and data lines.

Chip Ferrite Bead Replacement Considerations

Consult Signal Transformer's official substitution guide for verified equivalents. Generic replacements may differ in impedance characteristics or current handling capabilities.
