FCB-0603A-221P

Chip Ferrite Bead Overview

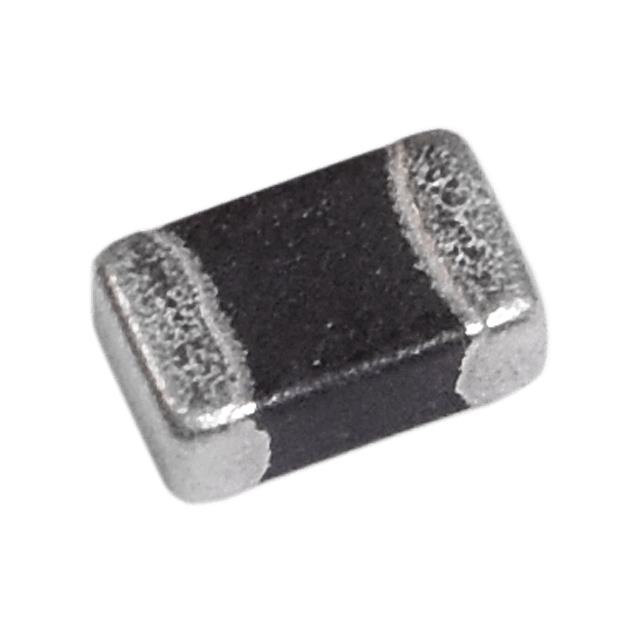

The FCB-0603A-221P is a single-channel ferrite chip bead manufactured by Bel Signal Transformer, designed for surface-mount assembly in the 0603 (1608 metric) package. It provides an impedance of 220 Ohms at a test frequency of 100 MHz with a tolerance of ±25%. The component supports a maximum DC current of 2 A and exhibits a maximum DC resistance of 80 mOhms. It operates within a temperature range of -55°C to +125°C and features shielded construction.

Chip Ferrite Bead Feature Summary

• Provides high-frequency noise suppression through significant impedance at 100 MHz
• Supports high-current applications up to 2 A with low DC resistance
• Utilizes shielded design to minimize electromagnetic interference
• Compatible with standard SMD/SMT reflow soldering processes

Chip Ferrite Bead Applications

• Power line filtering in compact electronic devices
• Noise suppression on data lines requiring high current handling
• EMI reduction in mobile and portable equipment
• Signal integrity enhancement in space-constrained PCB layouts

Chip Ferrite Bead Procurement Notes

Verify the specific ordering suffix and manufacturer designation, as Bel Signal Transformer products may be listed under either brand name. Confirm RoHS compliance status directly from the official datasheet before integration. Ensure the 0603 footprint matches your PCB design constraints. Check for any regional distribution restrictions or limited availability notices associated with this specific part number.

Chip Ferrite Bead Selection Notes

Select this component when a 220 Ohm impedance at 100 MHz is required for noise attenuation. The 2 A current rating makes it suitable for power rails where lower-impedance beads would saturate. The 0603 package offers a balance between performance and board space. Verify that the 80 mOhms DC resistance meets your voltage drop requirements. Ensure the operating temperature range covers your application environment.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the FCB series of general-purpose chip beads. It is part of a broader family of signal conditioning components used for EMI suppression. The 0603 form factor is common in modern electronics for miniaturization. Similar parts in the series offer varying impedance values and current ratings to suit different circuit requirements.

Chip Ferrite Bead Replacement Considerations

Direct substitutes include other 0603 ferrite beads with 220 Ohms impedance at 100 MHz and ≥2 A current rating. Verify pin compatibility and impedance curves match your design needs. Consider alternatives like the FCB-0603-221P if packaging differences are acceptable. Always validate electrical performance with the replacement component's datasheet.
