FCB-0805-121A

Chip Ferrite Bead Overview

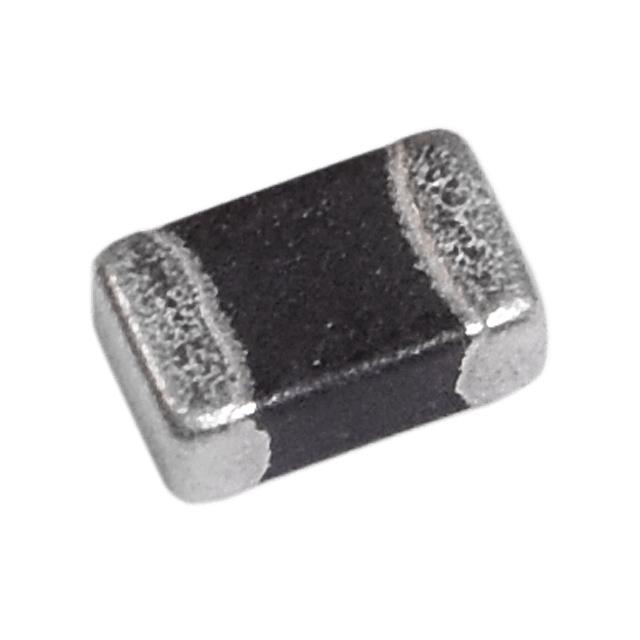

The Signal Transformer FCB-0805-121A is a surface-mount ferrite bead designed for power line noise suppression. It features an impedance of 120 Ohms at a test frequency of 100 MHz. The component supports a maximum DC current of 300 mA and exhibits a maximum DC resistance of 250 mOhms. It operates within a temperature range of -55°C to +125°C and has a tolerance of 25%. The device utilizes a standard 0805 (2012 Metric) package footprint.

Chip Ferrite Bead Feature Summary

• Provides effective high-frequency noise attenuation on power lines through magnetic dissipation.
• Designed for compact surface-mount integration in space-constrained electronic assemblies.
• Constructed with shielded elements to minimize electromagnetic interference coupling.

Chip Ferrite Bead Applications

• Power supply input filtering
• High-speed digital signal line protection
• EMI suppression in portable consumer electronics

Chip Ferrite Bead Procurement Notes

Verify the specific suffix 'A' against manufacturer documentation to confirm impedance characteristics and tolerance levels. Ensure the selected variant matches the required 120 Ohm impedance specification for the target application frequency. Confirm RoHS compliance status and moisture sensitivity classification prior to final procurement approval.

Chip Ferrite Bead Selection Notes

Select this component based on the required 120 Ohm impedance at 100 MHz and the 300 mA current rating. Evaluate the thermal environment to ensure operation remains within the specified -55°C to +125°C range. Compare the 250 mOhm DCR against voltage drop requirements in the circuit design.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the SC Series SMD Power Inductors and Ferrite Beads family from Signal Transformer. It complements other components in the series by offering specialized noise suppression capabilities for power and signal integrity management in modern electronic systems.

Chip Ferrite Bead Replacement Considerations

Cross-reference part numbers such as FCB-0805-102P or FCB-0805-101A for alternative impedance values or element configurations. Verify that substitute components maintain compatible package dimensions and current ratings.

Chip Ferrite Bead FAQ

What is the impedance value of the FCB-0805-121A?

The impedance is 120 Ohms measured at a test frequency of 100 MHz.

Does this component support continuous DC current?

Yes, it supports a maximum DC current of 300 mA.
